TPSM82901 Series
Manufacturer: Texas Instruments
Beta
⌘K

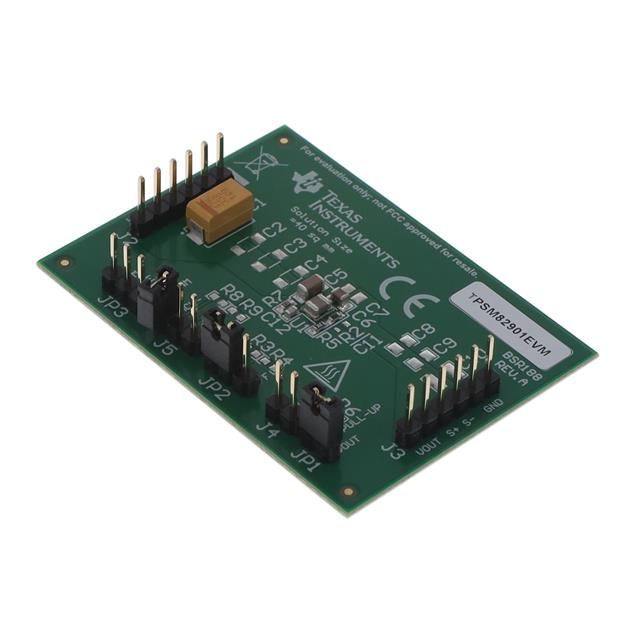

POWER MANAGEMENT IC DEVELOPMENT TOOLS TPSM82901 EVALUATION MODULE FOR 1-A STEP
| Part | Board Type | Supplied Contents | Outputs and Type | Outputs and Type | Regulator Topology | Contents | Utilized IC / Part | Main Purpose | Voltage - Input [Max] | Voltage - Input [Min] | Current - Output | Voltage - Output | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Operating Temperature [Max] | Operating Temperature [Min] | Type | Mounting Type | Voltage - Output 1 [Max] | Voltage - Output 1 [Min] | Control Features | Applications | Voltage - Input (Max) [Max] | Voltage - Input (Min) [Min] | Features | Supplier Device Package | Number of Outputs | Current - Output (Max) [Max] | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | Fully Populated | Board(s) | 1 | 1 Non-Isolated Output Non-Isolated | Buck | Board(s) | TPSM82901 | DC/DC Step Down | 17 V | 3.4 V | 1 A | 3.3 V | |||||||||||||||||||||
 Texas Instruments | 3 mm | 1.5 mm | 0.12 inches | 0.11 " | 2.8 mm | 0.06 " | 125 °C | -40 C | Non-Isolated PoL Module | Surface Mount | 5.5 V | 0.4 V | Active Low Enable | ITE (Commercial) | 17 V | 3 V | Adjustable Output Remote On/Off | 10-uSIP (3x2.8) | 1 | 1 A | 10-LDFN Exposed Pad |
