1571982 Series

Catalog

SWITCH SLIDE DPDT 0.4VA 20V

Part	Contact Finish	Voltage Rating - DC	Switch Function	Mounting Type	Actuator Length [x]	Contact Timing	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Switch Travel	Actuator Material	Contact Material	Operating Force [Max]	Operating Force [Min]	Voltage Rating - AC	Electrical Life	Current Rating (Amps)	Mechanical Life	Circuit	Actuator Type	Features	Actuator Length
TE Connectivity Raychem Cable Protection 1571982-7	Gold	20 V	On-On	Through Hole	2.8 mm	Non-Shorting	PC Pin	-20 C	80 C	3.05 mm	Polybutylene Terephthalate (PBT)	Copper	600 gf	150 gf	20 V	60000 Cycles	0.4 VA	60000 Cycles	DPDT	Standard
TE Connectivity Raychem Cable Protection 1571982-1	Gold	20 V	On-On	Through Hole	2.8 mm	Non-Shorting	PC Pin	-20 C	80 C	3.05 mm	Polybutylene Terephthalate (PBT)	Copper	600 gf	150 gf	20 V	60000 Cycles	0.4 VA	60000 Cycles	SPDT	Standard	Epoxy Sealed Terminals

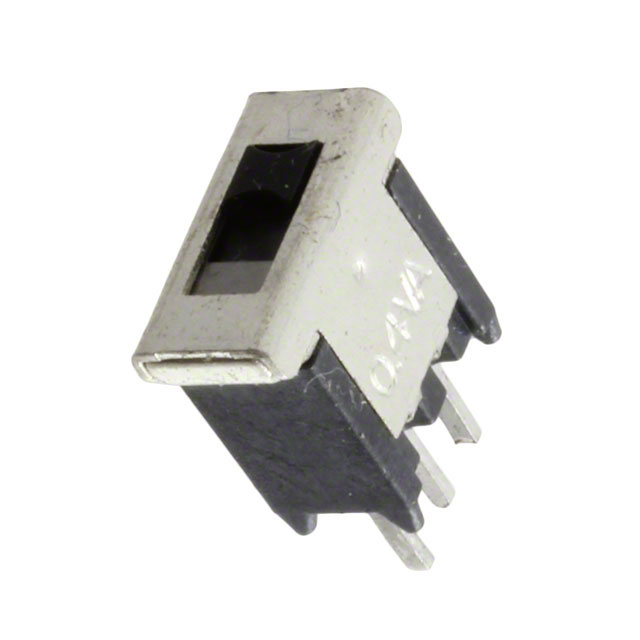

TE Connectivity Raychem Cable Protection 1571982-3	Gold	20 V	On-Off-On	Through Hole		Non-Shorting	PC Pin	-20 C	80 C	3.05 mm	Polybutylene Terephthalate (PBT)	Copper	600 gf	150 gf	20 V	60000 Cycles	0.4 VA	60000 Cycles	SPDT	Flush	Epoxy Sealed Terminals	Flush
TE Connectivity Raychem Cable Protection 1571982-4	Gold	20 V	On-Off-On	Through Hole	2.8 mm	Non-Shorting	PC Pin	-20 C	80 C	3.05 mm	Polybutylene Terephthalate (PBT)	Copper	600 gf	150 gf	20 V	60000 Cycles	0.4 VA	60000 Cycles	SPDT	Standard	Epoxy Sealed Terminals
