9431-1583 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

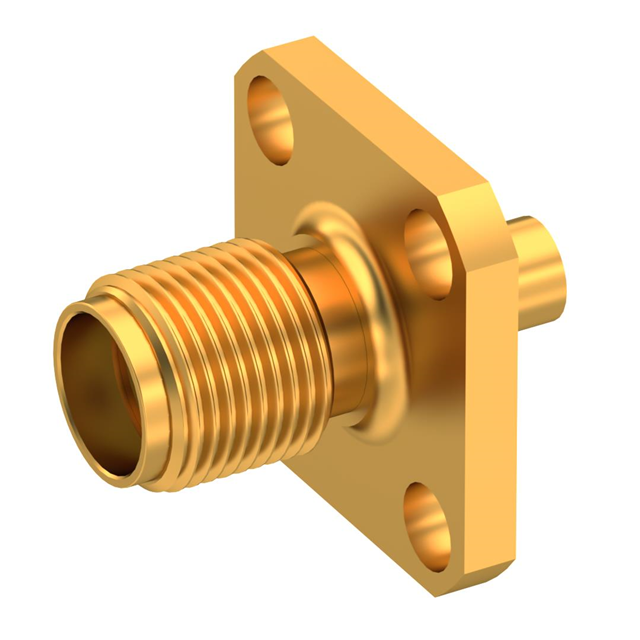

SMA F STR SQF SD .085
| Part | Center Contact Plating | Dielectric Material | Voltage Rating | Mating Cycles | Operating Temperature [Max] | Operating Temperature [Min] | Body Material | Body Finish | Contact Termination | Shield Termination | Fastening Type | Center Contact Material | Number of Ports | Housing Color | Mounting Feature | Cable Group | Connector Type | Impedance | Mounting Type | Connector Style | Frequency - Max [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Gold | Polytetrafluoroethylene (PTFE) | 350 VDC | 500 | 105 ░C | -65 ░C | Stainless Steel | Gold | Solder | Solder | Threaded | Beryllium Copper | 1 | Gold | Flange | RG-405 (.085" Semi Rigid) | Female Socket Jack | 50 Ohms | Panel Mount | SMA | 18 GHz |
