XBP9B Series

Catalog

802.15.4 LR-WPAN SOC 928MHZ 200KBPS

Part	Utilized IC / Part	Mounting Type	Frequency	Modulation	Operating Temperature [Max]	Operating Temperature [Min]	Antenna Type	Sensitivity	Power - Output	RF Family/Standard	Memory Size	Data Rate	Voltage - Supply [Max]	Voltage - Supply [Min]	Serial Interfaces	Package / Case	Current - Transmitting	Current - Receiving
Digi International XBP9B-DMWT-012	ADF7023	Through Hole	900 MHz	FHSS	85 °C	-40 C	Integrated Wire Antenna	-110 dBm	24 dBm	General ISM < 1GHz	2 kB 32 kB	200 kbps	3.6 V	2.4 V	SPI UART	Module	229 mA	44 mA
Digi International XBP9B-DPWT-011	ADF7023	Through Hole	900 MHz	FHSS	85 °C	-40 C	Integrated Wire Antenna	-110 dBm	24 dBm	General ISM < 1GHz	2 kB 32 kB	10 kbps	3.6 V	2.4 V	SPI UART	Module	229 mA	44 mA

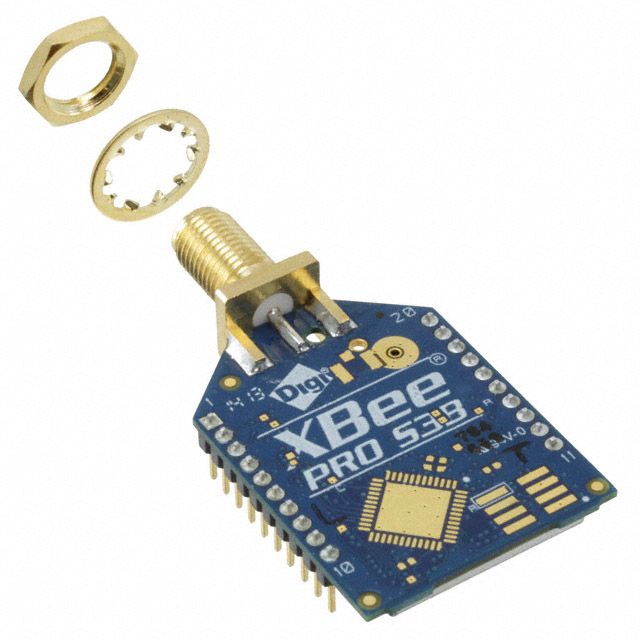

Digi International XBP9B-DMST-002	ADF7023	Through Hole	900 MHz	FHSS	85 °C	-40 C	RP-SMA	-110 dBm	24 dBm	General ISM < 1GHz		200 kbps	3.6 V	2.4 V	SPI UART	Module	229 mA	44 mA

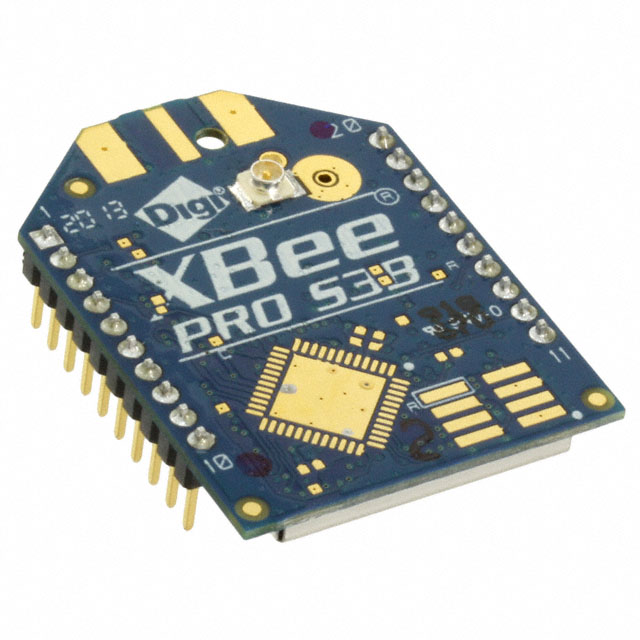

Digi International XBP9B-DMUT-002	ADF7023	Through Hole	900 MHz	FHSS	85 °C	-40 C	Antenna Not Included U.FL	-110 dBm	24 dBm	General ISM < 1GHz		200 kbps	3.6 V	2.4 V	SPI UART	Module	229 mA	44 mA
Digi International XBP9B-XCUT-001	ADF7023	Through Hole	900 MHz	FHSS	85 °C	-40 C	Antenna Not Included U.FL	-109 dBm	24 dBm	General ISM < 1GHz		10 kbps	3.6 V	2.4 V	UART	Module	215 mA	26 mA

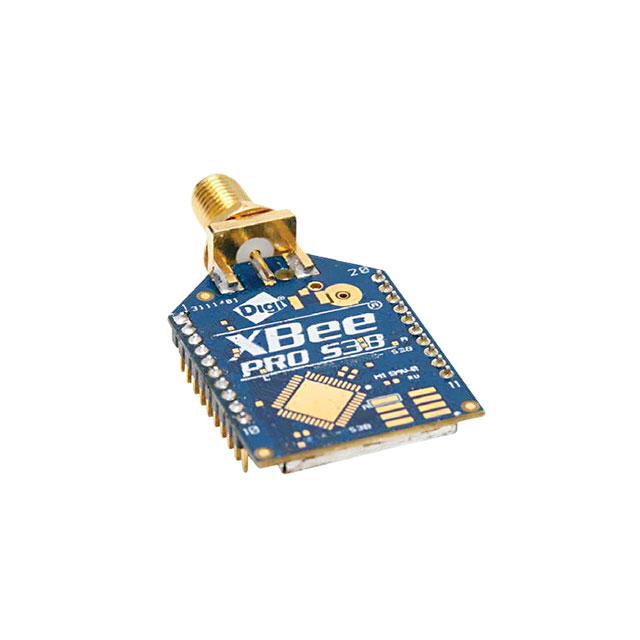

Digi International XBP9B-DPUT-021	ADF7023	Through Hole	920 MHz	FHSS	85 °C	-40 C	Antenna Not Included U.FL	-110 dBm	24 dBm	General ISM < 1GHz	2 kB 32 kB	10 kbps	3.6 V	2.4 V	SPI UART	Module	229 mA	44 mA

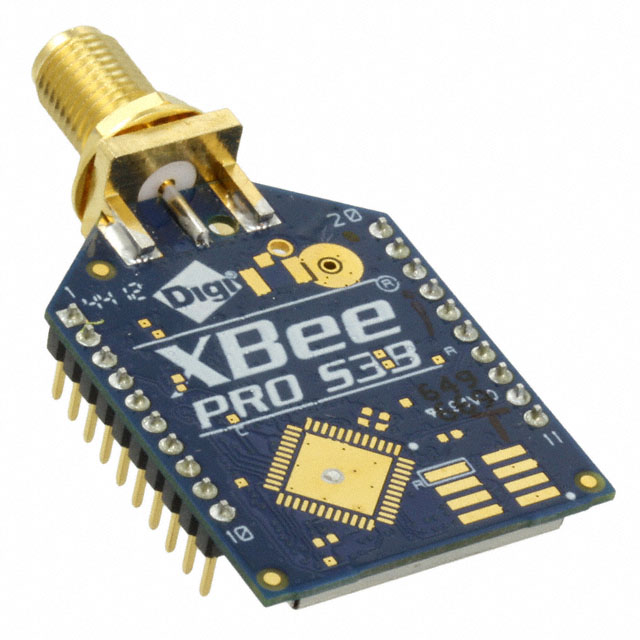

Digi International XBP9B-DPST-011	ADF7023	Through Hole	900 MHz	FHSS	85 °C	-40 C	RP-SMA	-110 dBm	24 dBm	General ISM < 1GHz	2 kB 32 kB	10 kbps	3.6 V	2.4 V	SPI UART	Module	229 mA	44 mA

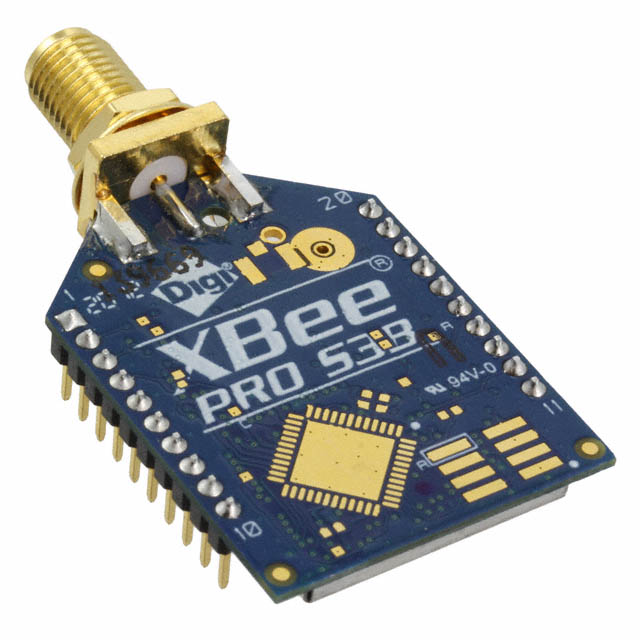

Digi International XBP9B-XCST-022	ADF7023	Through Hole	920 MHz	FHSS	85 °C	-40 C	RP-SMA	-107 dBm	24 dBm	General ISM < 1GHz		20 kbps	3.6 V	2.4 V	UART	Module	215 mA	26 mA

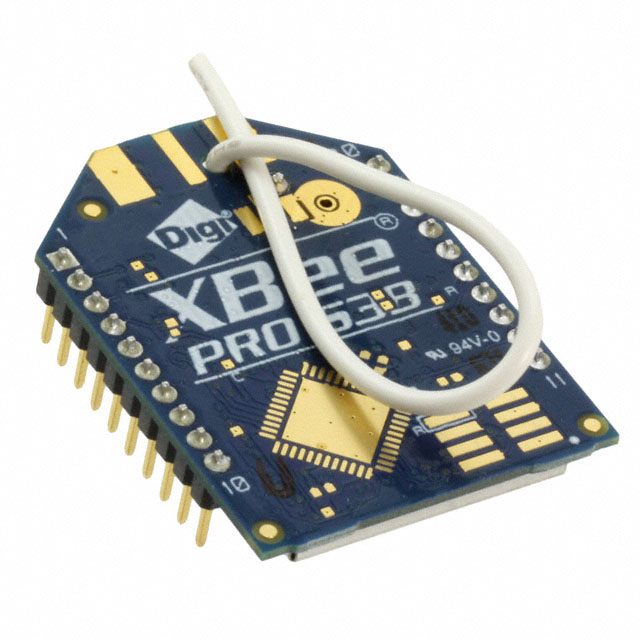

Digi International XBP9B-DMWT-002	ADF7023	Through Hole	900 MHz	FHSS	85 °C	-40 C	Integrated Wire Antenna	-110 dBm	24 dBm	General ISM < 1GHz		200 kbps	3.6 V	2.4 V	SPI UART	Module	229 mA	44 mA
Digi International XBP9B-XCST-001	ADF7023	Through Hole	900 MHz	FHSS	85 °C	-40 C	RP-SMA	-109 dBm	24 dBm	General ISM < 1GHz		10 kbps	3.6 V	2.4 V	UART	Module	215 mA	26 mA
