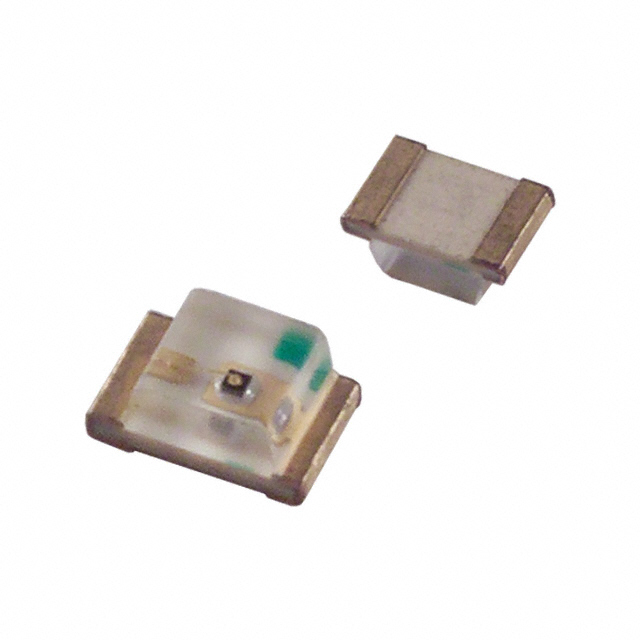

SML-210 Series

Catalog

LED GREEN CLEAR 2012 SMD

Part	Lens Size [x]	Lens Size [y]	Lens Color	Wavelength - Peak	Package / Case	Height (Max) [Max] [z]	Color	Lens Transparency	Size / Dimension [x]	Size / Dimension [y]	Supplier Device Package	Supplier Device Package	Lens Style	Mounting Type	Millicandela Rating	Voltage - Forward (Vf) (Typ)	Configuration	Current - Test
Rohm Semiconductor SML-210PTT86	1.4 mm	1.25 mm	Colorless	555 nm	0805	0.9 mm	Green	Clear	2 mm	1.25 mm	2012	0805	Rectangle with Flat Top	Surface Mount	4 mcd	2.2 V	Standard	20 mA
Rohm Semiconductor SML-210LTT86	1.4 mm	1.25 mm	Colorless	660 nm	0805	0.9 mm	Red	Clear	2 mm	1.25 mm	2012	0805	Rectangle with Flat Top	Surface Mount	10 mcd	1.75 V	Standard	20 mA
Rohm Semiconductor SML-210MTT86	1.4 mm	1.25 mm	Colorless	570 nm	0805	0.9 mm	Green	Clear	2 mm	1.25 mm	2012	0805	Rectangle with Flat Top	Surface Mount	16 mcd	2.2 V	Standard	20 mA
