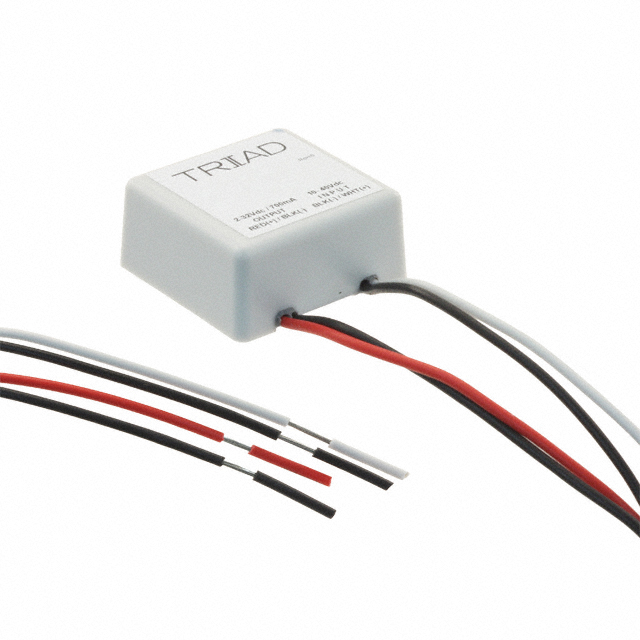

TLM40 Series

Catalog

LED POWER SUPPLIES INPUT: 10-40 VDC A. 1A MAX, OUTPUT: .700 AMP A. 2 TO VIN-2 VDC, 26W MAX.

Part	Mounting Type	Weight [diameter]	Weight [diameter]	Voltage - Input (Min) [Min]	Power (Watts)	Current - Output (Max) [Max]	Efficiency	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Voltage - Output [Max]	Voltage - Output [Min]	Type	Ratings	Termination Style	Features	Number of Outputs	Topology	Operating Temperature [Max]	Operating Temperature [Min]
Triad Magnetics TLM4036DC-0700	Chassis Mount	0.055 lb	24.95 g	10 VDC	26 W	700 mA	90 %	1.22 in	1.26 in	31 mm	32 mm	15 mm	0.59 in	38 V	2 V	Constant Current	IP66 NEMA 4	Wire Leads	SCP	1	Buck	60 °C	-40 C
