EI1808 Series
Manufacturer: Carlo Gavazzi Inc.
Beta
⌘K

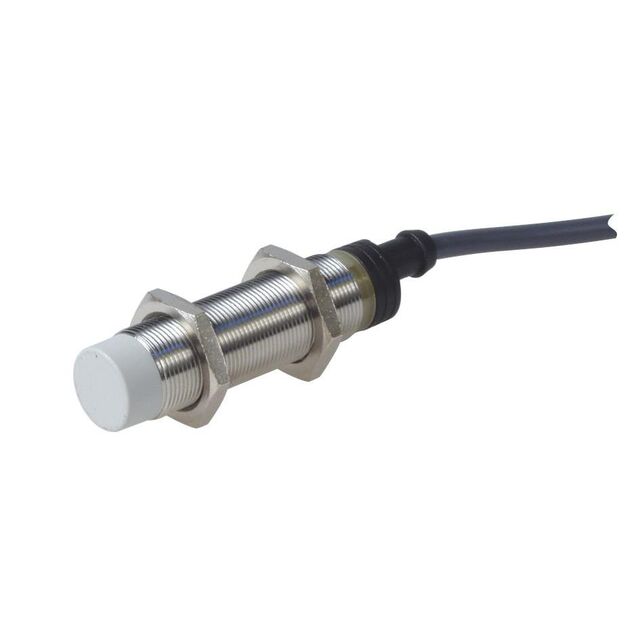

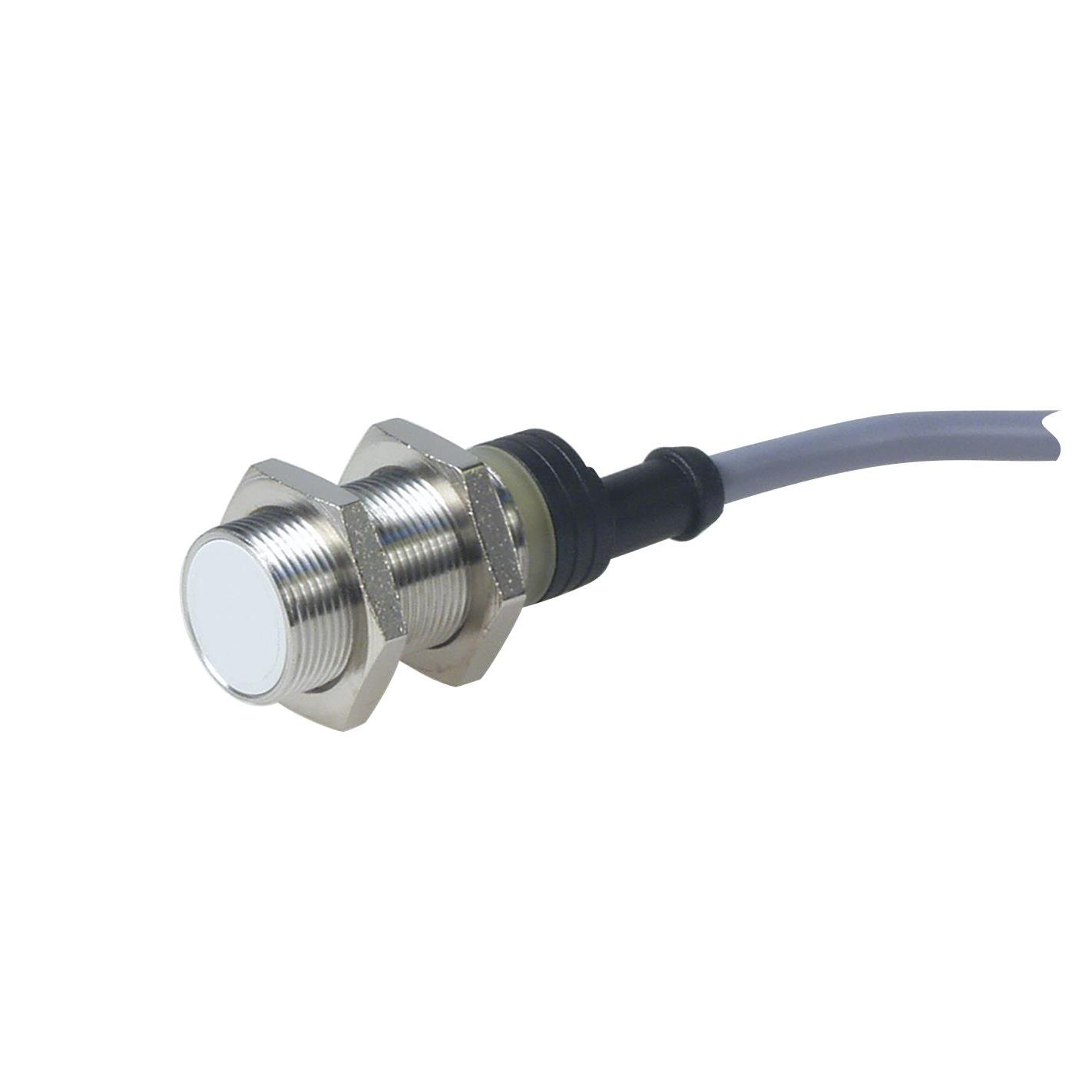

SENSOR PROX INDUCTIVE 8MM CYLIND
| Part | Indicator | Shielding | Package / Case | Sensor Type | Response Frequency | Operating Temperature [Min] | Operating Temperature [Max] | Sensing Distance | Sensing Distance | Output Type | Ingress Protection | Material - Body | Termination Style | Voltage - Supply [Max] | Voltage - Supply [Min] | Output Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Carlo Gavazzi Inc. | LED | Unshielded | Cylinder Threaded - M18 | Inductive | 25 Hz | -25 °C | 70 °C | 8 mm | 0.315 in | 2-Wire SCR-NC | 1 13 3 4 6 IP67 | Stainless Steel | Cable Leads | 250 VAC | 20 VAC | |
 Carlo Gavazzi Inc. | LED | Unshielded | Cylinder Threaded - M18 | Inductive | 400 Hz | -25 °C | 70 °C | 8 mm | 0.315 in | PNP-NC | 1 13 3 4 6 IP67 | Stainless Steel | Connector | 40 VDC | 10 VDC | 3 |
 Carlo Gavazzi Inc. | LED | Unshielded | Cylinder Threaded - M18 | Inductive | 400 Hz | -25 °C | 70 °C | 8 mm | 0.315 in | PNP-NO | 1 13 3 4 6 IP67 | Stainless Steel | Connector | 40 VDC | 10 VDC | 3 |
 Carlo Gavazzi Inc. | LED | Unshielded | Cylinder Threaded - M18 | Inductive | 400 Hz | -25 °C | 70 °C | 8 mm | 0.315 in | PNP-NC | 1 13 3 4 6 IP67 | Stainless Steel | Cable Leads | 40 VDC | 10 VDC | 3 |
