R19151 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K
N MALE - TNC FEMALE STRAIGHT ADA
| Part | Body Finish | Operating Temperature [Max] | Operating Temperature [Min] | Mating Cycles | Center Contact Material | Body Material | Dielectric Material | Conversion Type | Style | Center Contact Plating | Convert From (Adapter End) | Adapter Series | Impedance | Mounting Type | Adapter Type | Frequency - Max [Max] | Convert To (Adapter End) | Mounting Feature | Center Gender |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Chromium | 155 C | -55 C | 500 | Beryllium Copper | Brass | Polytetrafluoroethylene (PTFE) | Between Series | Straight | Gold | N Plug Male Pin | N to TNC | 50 Ohms | Free Hanging (In-Line) | Plug to Jack | 11 GHz | Female Socket TNC Jack | ||

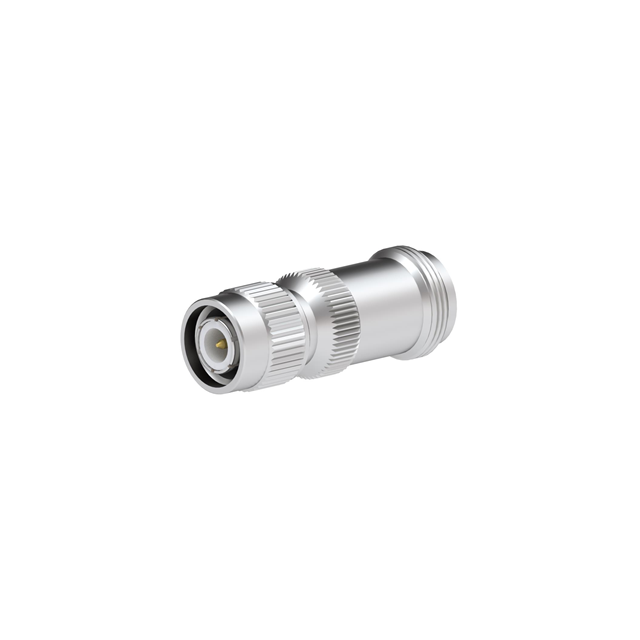

 Radiall USA, Inc. | Nickel | 155 C | -55 C | 500 | Beryllium Copper | Brass | Polytetrafluoroethylene (PTFE) | Between Series | Straight | Gold | Female Socket N Jack | N to TNC | 50 Ohms | Free Hanging (In-Line) | Plug to Jack | 11 GHz | TNC Plug Male Pin | ||

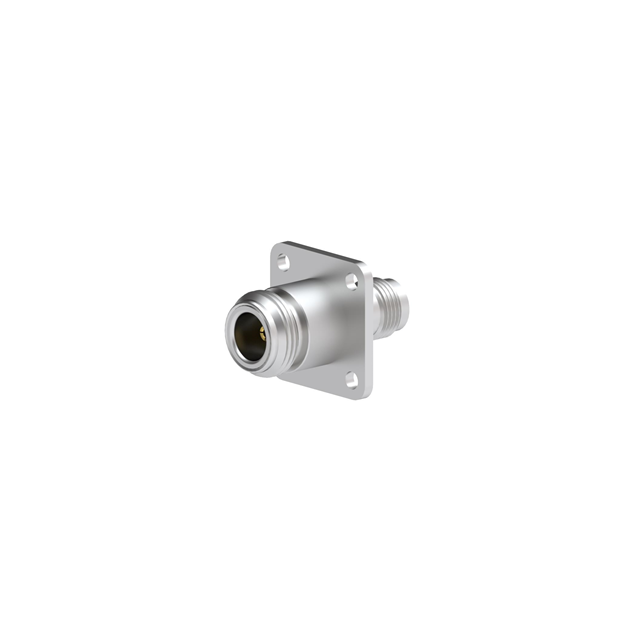

 Radiall USA, Inc. | Nickel | 165 °C | -65 ░C | 500 | Beryllium Copper | Brass | Polytetrafluoroethylene (PTFE) | Between Series | Straight | Gold | Female Socket N Jack | N to TNC | 50 Ohms | Panel Mount | Jack to Jack | 11 GHz | Female Socket TNC Jack | Flange | Female to Female |
