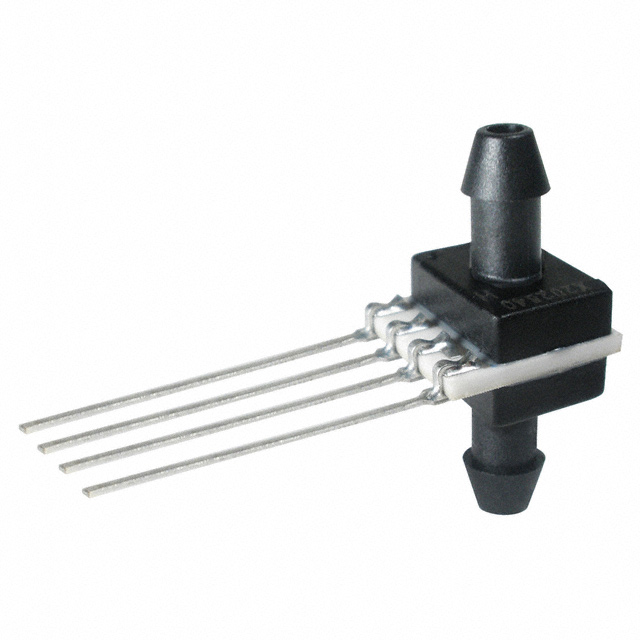

SSCSAAN Series

Catalog

SENSOR 0.04PSID 0.19" 4.5V 4SIP

Part	Features	Termination Style	Applications	Voltage - Supply [Min]	Voltage - Supply [Max]	Accuracy	Operating Pressure	Operating Pressure	Output [Max]	Output [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Port Style	Pressure Type	Output Type	Package / Case	Port Size	Port Size	Port Size	Mounting Type	Maximum Pressure	Maximum Pressure	Output
Honeywell Sensing and Productivity Solutions SSCSAAN001NDAA5	Amplified Output Temperature Compensated	PC Pin	Board Mount	4.95 V	5.05 V	0.25 %	0.04 PSI	0.25 kPa	4.5 V	0.5 V	85 °C	-40 C	4-SIP	Barbed	Differential	Analog Voltage	4-SIP Dual Ports Opposite Sides	Dual Male Tube	0.19 in	4.93 mm	Through Hole
Honeywell Sensing and Productivity Solutions SSCSAAN004ND2A5	Amplified Output Temperature Compensated	PC Pin	Board Mount	4.95 V	5.05 V	0.25 %	0.15 PSI	1 kPa			85 °C	-40 C	4-SIP	Barbed	Differential	I2C	4-SIP Dual Ports Opposite Sides	Dual Male Tube	0.19 in	4.93 mm	Through Hole	74.75 kPa	10.84 PSI	12 b
Honeywell Sensing and Productivity Solutions SSCSAAN005PDAA3	Amplified Output Temperature Compensated	PC Pin	Board Mount	3 V	3.6 V	0.25 %	5 PSI	34.47 kPa	2.97 V	0.33 V	85 °C	-40 C	4-SIP	Barbed	Differential	Analog Voltage	4-SIP Dual Ports Opposite Sides	Dual Male Tube	0.19 in	4.93 mm	Through Hole	206.84 kPa	30 PSI
