PEAMW30I Series

Wall Mount Power Supply 48V 30 Watt

Manufacturer: TT Electronics/BI

Catalog

Wall Mount Power Supply 48V 30 Watt

Catalog

Wall Mount Power Supply 48V 30 Watt

Part	Input Type	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]	Standard Number	Efficiency	Cord Length	Cord Length	Polarization	No Load Power Consumption	Output Connector [diameter]	Output Connector [x]	Output Connector	Voltage - Output	Region Utilized	Input Connector	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Input [Max]	Voltage - Input [Min]	Current - Output (Max) [Max]	Applications	Form
TT Electronics/BI PEAMW30I-13-B2	Multi-Blade (Single Blade Included)	30 Watts	0 °C	60 °C	60601-1	Level VI	47 in	1.2 m	Positive Center	100 mW	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	15 V	International	NEMA 1-15P	32.5 mm	1.28 "	42.8 mm	73.6 mm	2.9 in	1.69 "	264 VAC	90 VAC	2 A	Medical	Wall Mount

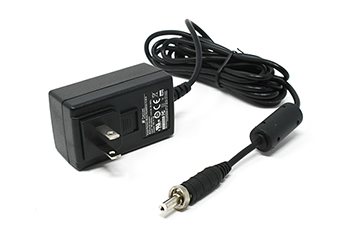

TT Electronics/BI PEAMW30I-18-B2	Multi-Blade (Single Blade Included)	30 Watts	0 °C	60 °C	60601-1	Level VI	47 in	1.2 m	Positive Center	100 mW	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	48 V	International	NEMA 1-15P	32.5 mm	1.28 "	42.8 mm	73.6 mm	2.9 in	1.69 "	264 VAC	90 VAC	620 mA	Medical	Wall Mount
TT Electronics/BI PEAMW30I-12-B2	Multi-Blade (Single Blade Included)	30 Watts	0 °C	60 °C	60601-1	Level VI	47 in	1.2 m	Positive Center	100 mW	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	12 V	International	NEMA 1-15P	32.5 mm	1.28 "	42.8 mm	73.6 mm	2.9 in	1.69 "	264 VAC	90 VAC	2.5 A	Medical	Wall Mount
TT Electronics/BI PEAMW30I-10-B2	Multi-Blade (Single Blade Included)	20 W	0 °C	60 °C	60601-1	Level VI	47 in	1.2 m	Positive Center	100 mW	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	5 V	International	NEMA 1-15P	32.5 mm	1.28 "	42.8 mm	73.6 mm	2.9 in	1.69 "	264 VAC	90 VAC	4 A	Medical	Wall Mount
TT Electronics/BI PEAMW30I-14-B2	Multi-Blade (Single Blade Included)	30 Watts	0 °C	60 °C	60601-1	Level VI	47 in	1.2 m	Positive Center	100 mW	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	24 V	International	NEMA 1-15P	32.5 mm	1.28 "	42.8 mm	73.6 mm	2.9 in	1.69 "	264 VAC	90 VAC	1.25 A	Medical	Wall Mount
