KP04 Series

Catalog

SWITCH CAP, NKK KP04 SERIES ILLUMINATED SURFACE MOUNT PUSHBUTTON SWITCHES, TRANSPARENT

Part	Shape	Size [y]	Size [z]	Size [x]	For Use With/Related Products	Illumination	Color	Switch Type	Mounting Type	Color - Actuator/Cap	Circuit	Termination Style	Actuator Type	Switch Function	Current Rating (Amps)	Illumination Type, Color	Operating Temperature [Max]	Operating Temperature [Min]	Illumination Voltage (Nominal)	Voltage Rating - DC	Type	Electrical Life	Mechanical Life
NKK Switches AT3179JB	Sculptured Square	15 mm	11.7 mm	15 mm	KP04 Series	Illuminated	Clear White	Pushbutton	Snap Fit
NKK Switches KP0415ASG03RGBW-3FJB									Surface Mount	Clear	SPST-NO	SMD (SMT) Tab	Button Square	Off-Mom	100 mA	Blue Green LED Red White	50 °C	-25 °C	2.1 VDC 2.65 VDC 2.9 VDC 3.08 VDC	12 V	Illuminated Standard
NKK Switches KP0415ASG03RGBW-MT-1FJB									Surface Mount	Clear	SPST-NO	SMD (SMT) Tab	Button Square	Off-Mom	100 mA	Blue Green LED Red White	50 °C	-25 °C	2.1 VDC 2.65 VDC 2.9 VDC 3.08 VDC	12 V	Illuminated Standard	3000000 Cycles	3000000 Cycles
NKK Switches KP0415ASG03RGBP-3FJB									Surface Mount	Clear	SPST-NO	SMD (SMT) Tab	Button Square	Off-Mom	100 mA	Blue Green LED Red	50 °C	-25 °C		12 V	Illuminated Standard

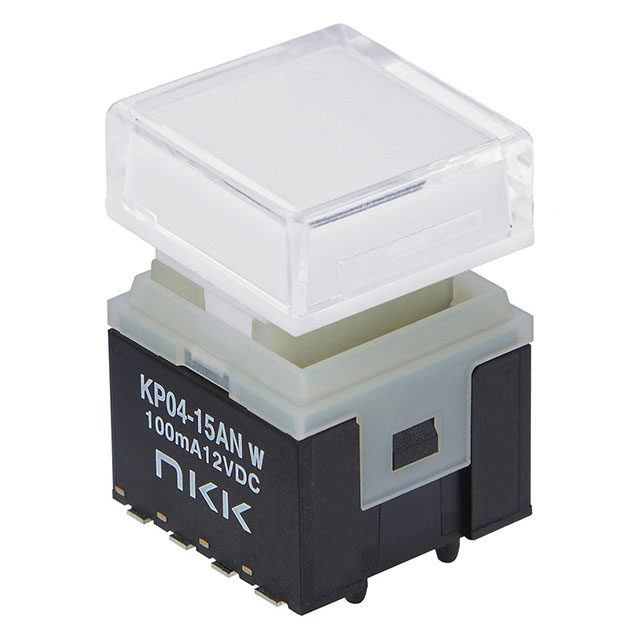

NKK Switches KP0415ANG03RGBW-MT-2FJB									Surface Mount	Clear	SPST-NO	SMD (SMT) Tab	Button Square	Off-Mom	100 mA	Blue Green LED Red White	50 °C	-25 °C	2.1 VDC 2.65 VDC 2.9 VDC 3.08 VDC	12 V	Illuminated Standard	3000000 Cycles	3000000 Cycles
NKK Switches KP0415ASG03RGBP-MT-2FJB									Surface Mount	Clear	SPST-NO	SMD (SMT) Tab	Button Square	Off-Mom	100 mA	Blue Green LED Red	50 °C	-25 °C		12 V	Illuminated Standard
NKK Switches AT3183JB	Square	12 mm	11.7 mm	12 mm	KP04 Series	Illuminated	Clear White	Pushbutton	Snap Fit

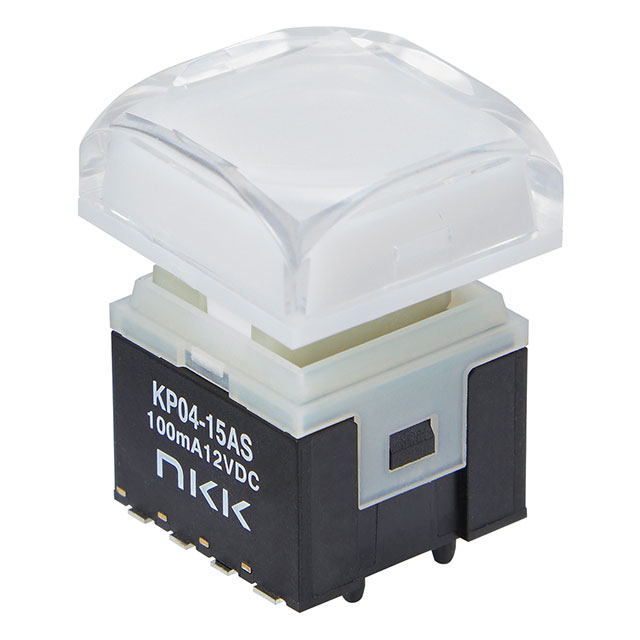

NKK Switches KP0415ANG03RGBW-3SJB									Surface Mount	Clear	SPST-NO	SMD (SMT) Tab	Button Square	Off-Mom	100 mA	Blue Green LED Red White	50 °C	-25 °C	2.1 VDC 2.65 VDC 2.9 VDC 3.08 VDC	12 V	Illuminated Standard
NKK Switches KP0415ASG03RGBP-MT-3SJB									Surface Mount	Clear	SPST-NO	SMD (SMT) Tab	Button Square	Off-Mom	100 mA	Blue Green LED Red	50 °C	-25 °C		12 V	Illuminated Standard	3000000 Cycles	3000000 Cycles
NKK Switches KP0415ASG03RGBP-MT-3TJB									Surface Mount	Clear	SPST-NO	SMD (SMT) Tab	Button Square	Off-Mom	100 mA	Blue Green LED Red	50 °C	-25 °C		12 V	Illuminated Standard
