146140 Series

Catalog

CONN RCPT 10POS 0.1 GOLD PCB R/A

Part	Contact Shape	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material	Insulation Material	Contact Length - Post	Contact Length - Post	Number of Positions Loaded	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination	Current Rating (Amps)	Number of Rows [custom]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Height [z]	Insulation Height [z]	Contact Finish - Post	Contact Finish - Mating	Number of Positions	Connector Type	Material Flammability Rating	Insulation Color	Pitch - Mating	Pitch - Mating	Fastening Type	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type

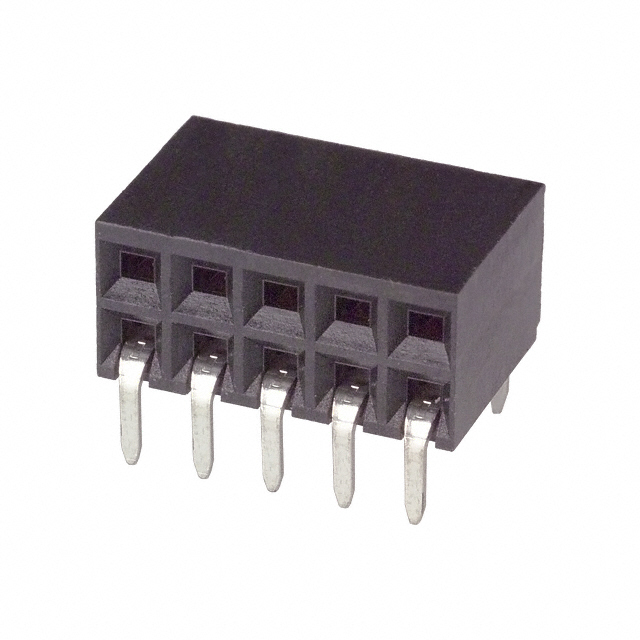

TE Connectivity AMP Connectors 146140-4	Square	1.27 µm	50 µin	Phosphor Bronze	Polyester Glass Filled	0.115 in	2.92 mm	All	0.25 µm	10 µin	Solder	2 A	2	0.1 in	2.54 mm	0.238 "	6.05 mm	Tin-Lead	Gold	10	Receptacle	UL94 V-0	Black	0.1 "	2.54 mm	Push-Pull	Female Socket	-55 C	125 °C	Right Angle Through Hole

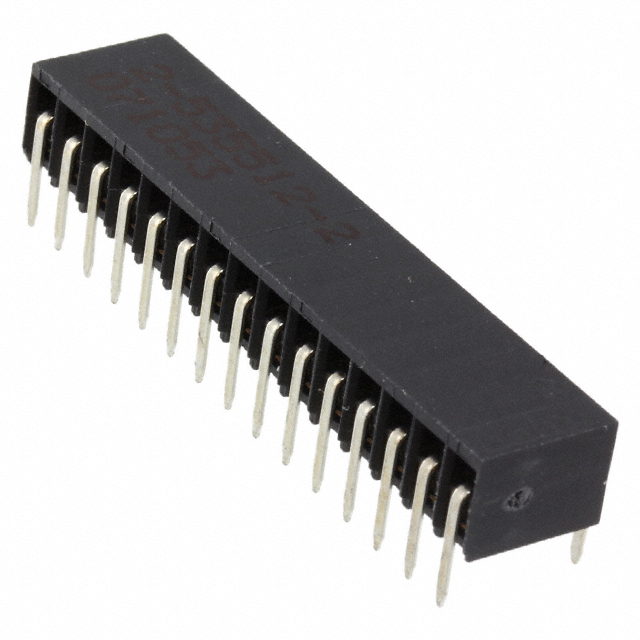

TE Connectivity AMP Connectors 1-146140-4	Square	1.27 µm	50 µin	Phosphor Bronze	Polyester Glass Filled	0.115 in	2.92 mm	All	0.25 µm	10 µin	Solder	2 A	2	0.1 in	2.54 mm	0.238 "	6.05 mm	Tin-Lead	Gold	30	Receptacle	UL94 V-0	Black	0.1 "	2.54 mm	Push-Pull	Female Socket	-55 C	125 °C	Right Angle Through Hole

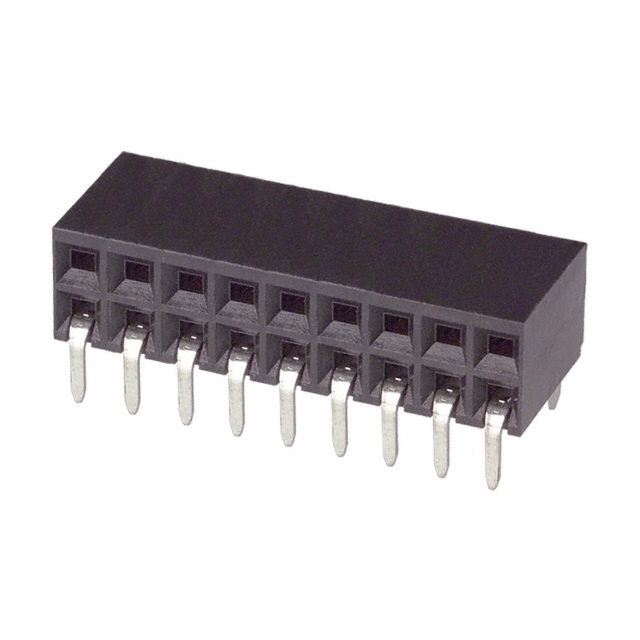

TE Connectivity AMP Connectors 146140-8	Square	1.27 µm	50 µin	Phosphor Bronze	Polyester Glass Filled	0.115 in	2.92 mm	All	0.25 µm	10 µin	Solder	2 A	2	0.1 in	2.54 mm	0.238 "	6.05 mm	Tin-Lead	Gold	18	Receptacle	UL94 V-0	Black	0.1 "	2.54 mm	Push-Pull	Female Socket	-55 C	125 °C	Right Angle Through Hole
