PWC12 Series

Catalog

AC/DC CONVERTER 9V 12W

Part	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Type	Line Regulation	Current - Output (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Load Regulation	Applications	Package / Case	Power (Watts)	Standard Number	Voltage - Input [Max]	Voltage - Input [Min]	Features	Efficiency	Voltage - Output 1	Approval Agency	Mounting Type	Number of Outputs	Load Regulation
Astrodyne TDI PWC12-9SE	1.24 "	0.92 "	53.6 mm	31.5 mm	23.3 mm	2.11 "	Enclosed	0.5 %	1.34 A	70 °C	-20 °C	1 %	ITE (Commercial) Medical	6-SIP Module	12 W	60601-1 60950-1	264 VAC	90 VAC	Universal Input	75 %	9 V	cURus UL	Through Hole	1
Astrodyne TDI PWC12-5	0.91 in	1.07 in	52.3 mm	23 mm	27.2 mm	2.06 "	Open Frame	0.5 %	2.4 A	70 °C	-20 °C	1 %	ITE (Commercial) Medical	4-DIP Module	12 W	60601-1 60950-1	264 VAC	90 VAC	Universal Input	72 %	5 V	cURus UL	Through Hole	1
Astrodyne TDI PWC12-48S	1.12 "	0.69 "	50.8 mm	28.5 mm	17.5 mm	2 in	Open Frame	0.5 %	250 mA	70 °C	-20 °C	1 %	ITE (Commercial) Medical	6-SIP Module	12 W	60601-1 60950-1	264 VAC	90 VAC	Universal Input	77 %	48 V	cURus UL	Through Hole	1
Astrodyne TDI PWC12-5S	1.12 "	0.69 "	50.8 mm	28.5 mm	17.5 mm	2 in	Open Frame	0.5 %	2.4 A	70 °C	-20 °C	1 %	ITE (Commercial) Medical	6-SIP Module	12 W	60601-1 60950-1	264 VAC	90 VAC	Universal Input	72 %	5 V	cURus UL	Through Hole	1

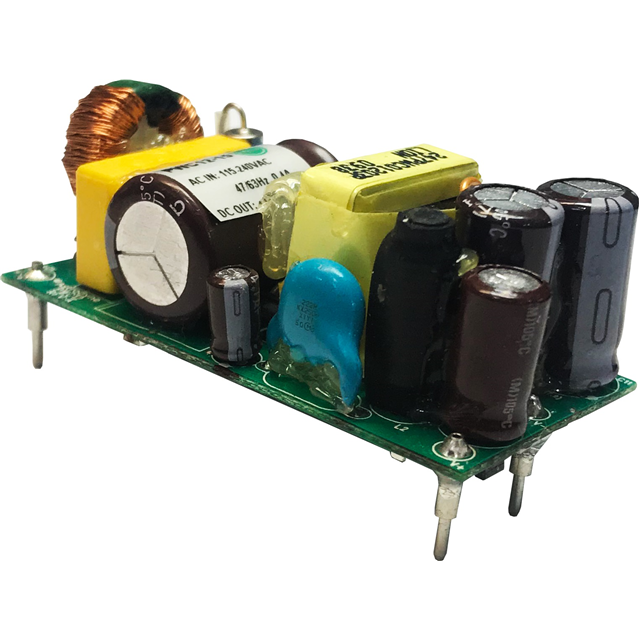

Astrodyne TDI PWC12-12	0.91 in	1.07 in	52.3 mm	23 mm	27.2 mm	2.06 "	Open Frame	0.5 %	1 A	70 °C	-20 °C	1 %	ITE (Commercial) Medical	4-DIP Module	12 W	60601-1 60950-1	264 VAC	90 VAC	Universal Input	75 %	12 V	cURus UL	Through Hole	1
Astrodyne TDI PWC12-15SE	1.24 "	0.92 "	53.6 mm	31.5 mm	23.3 mm	2.11 "	Enclosed	0.5 %	0.8 A	70 °C	-20 °C	1 %	ITE (Commercial) Medical	6-SIP Module	12 W	60601-1 60950-1	264 VAC	90 VAC	Universal Input	75 %	15 V	cURus UL	Through Hole	1

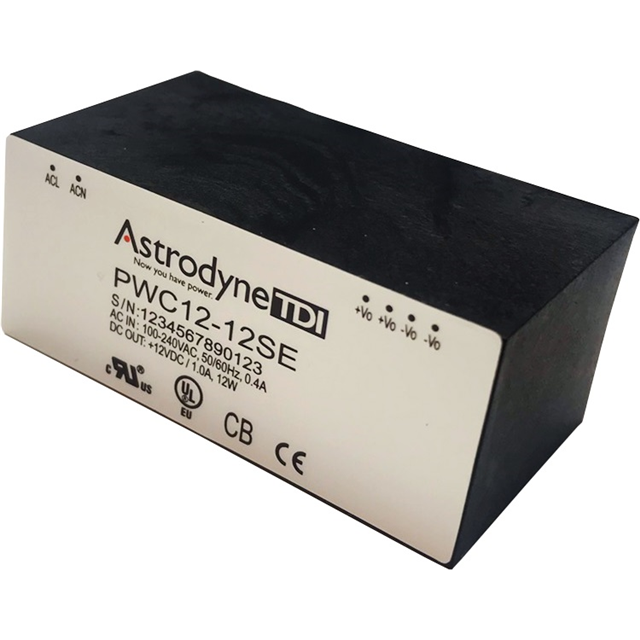

Astrodyne TDI PWC12-12SE	1.24 "	0.92 "	53.6 mm	31.5 mm	23.3 mm	2.11 "	Enclosed	0.5 %	1 A	70 °C	-20 °C	1 %	ITE (Commercial) Medical	6-SIP Module	12 W	60601-1 60950-1	264 VAC	90 VAC	Universal Input	75 %	12 V	cURus UL	Through Hole	1
Astrodyne TDI PWC12-15E	0.91 in	1.07 in	52.4 mm	23 mm	27.2 mm	2.06 "	Enclosed	0.5 %	0.8 A	70 °C	-20 °C		ITE (Commercial)	4-DIP Module	12 W		264 VAC	90 VAC	Universal Input	80 %	15 V	CB CE cURus UL	Through Hole	1	±1%
Astrodyne TDI PWC12-24E	0.91 in	1.07 in	52.4 mm	23 mm	27.2 mm	2.06 "	Enclosed	0.5 %	500 mA	70 °C	-20 °C		ITE (Commercial)	4-DIP Module	12 W		264 VAC	90 VAC	Universal Input		24 V	CB CE cURus UL	Through Hole	1	±1%
Astrodyne TDI PWC12-48	0.91 in	1.07 in	52.3 mm	23 mm	27.2 mm	2.06 "	Open Frame	0.5 %	250 mA	70 °C	-20 °C	1 %	ITE (Commercial) Medical	4-DIP Module	12 W	60601-1 60950-1	264 VAC	90 VAC	Universal Input	77 %	48 V	cURus UL	Through Hole	1
