AFB0524 Series

Catalog

FAN AXIAL 50X20MM 24VDC WIRE

Part	Current Rating (Amps)	Lifetime @ Temp.	Material - Blade	Voltage Range [Max]	Voltage Range [Min]	Material - Frame	Noise	RPM	Weight [custom]	Weight [custom]	Termination	Static Pressure	Static Pressure	Voltage - Rated	Width [y]	Size / Dimension [x]	Size / Dimension [z]	Power (Watts)	Approval Agency	Fan Type	Bearing Type	Air Flow	Air Flow	Operating Temperature [Max]	Operating Temperature [Min]	Weight [custom]	Weight [custom]	Features	Ingress Protection
Delta Electronics AFB0524VHD	100 mA	70000 Hrs	Plastic	27.6 VDC	14	Plastic	40.5 dB(A)	7000 RPM	0.085 lb	38.56 g	2 Wire Leads	75.5 Pa	0.303 in H2O	24 VDC	20 mm	50 mm	50 mm	2.4 W	CE CSA UL VDE	Tubeaxial	Ball	20.3 CFM	0.568 m³/min	70 °C	-10 °C

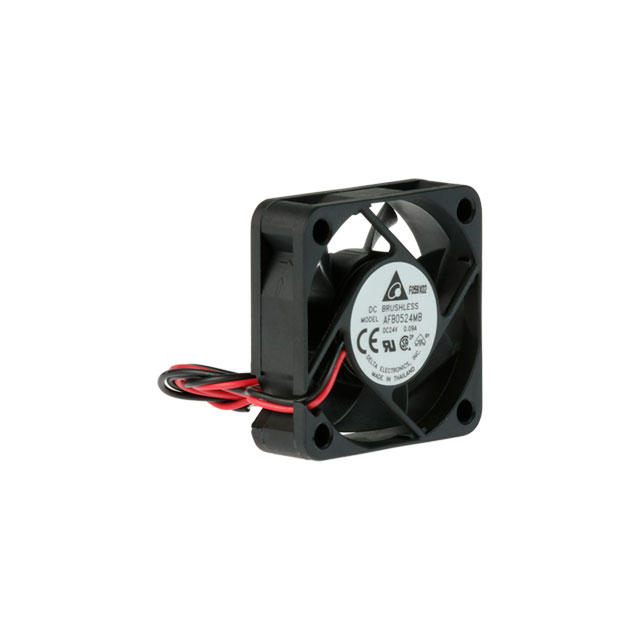

Delta Electronics AFB0524MB	60 mA	70000 Hrs	Plastic	27.6 VDC	14	Plastic	28 dB	4800 RPM			2 Wire Leads	44.8 Pa	0.18 in H2O	24 VDC	15 mm	50 mm	50 mm	1.44 W	CE CSA UL VDE	Tubeaxial	Ball	12.4 CFM	0.347 m³/min	70 °C	-10 °C	32.21 g	0.071 lb

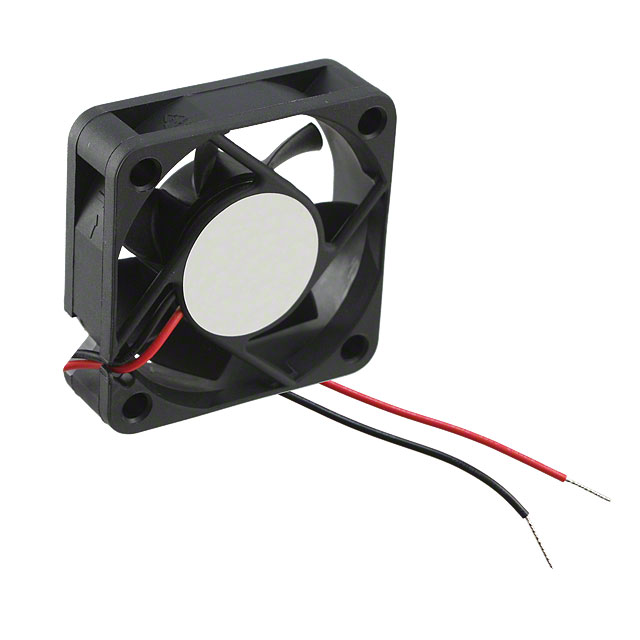

Delta Electronics AFB0524HHB		70000 Hrs	Plastic	27.6 VDC	14	Plastic	36 dB	6400 RPM			2 Wire Leads	78.5 Pa	0.315 in H2O	24 VDC	15 mm	50 mm	50 mm	1.92 W	CE CSA UL VDE	Tubeaxial	Ball	16.2 CFM	0.454 m³/min	70 °C	-10 °C	32.21 g	0.071 lb
Delta Electronics AFB0524HB	70 mA	70000 Hrs	Plastic	27.6 VDC	14	Plastic	32 dB	5600 RPM			2 Wire Leads	59.8 Pa	0.24 in H2O	24 VDC	15 mm	50 mm	50 mm	1.68 W	CE CSA UL VDE	Tubeaxial	Ball	14.1 CFM	0.395 m³/min	70 °C	-10 °C	32.21 g	0.071 lb	Locked Rotor Protection Speed Sensor (Tach)
Delta Electronics AFB0524VHD-TZW5	100 mA	70000 Hrs	Plastic	27.6 VDC	14	Plastic	40.5 dB(A)	7000 RPM	0.085 lb	38.56 g	2 Wire Leads	75.5 Pa	0.303 in H2O	24 VDC	20 mm	50 mm	50 mm	2.4 W	CE CSA UL VDE	Tubeaxial	Ball	20.3 CFM	0.568 m³/min	70 °C	-10 °C				IP55 - Dust Protected Water Resistant
Delta Electronics AFB0524HHD	0.09 A	70000 Hrs	Plastic	27.6 VDC	14	Plastic	37 dB	6400 RPM	0.085 lb	38.56 g	2 Wire Leads	63.3 Pa	0.254 in H2O	24 VDC	20 mm	50 mm	50 mm	2.16 W	CE CSA UL VDE	Tubeaxial	Ball	18.3 CFM	0.512 mł/min	70 °C	-10 °C
