9079-9513 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

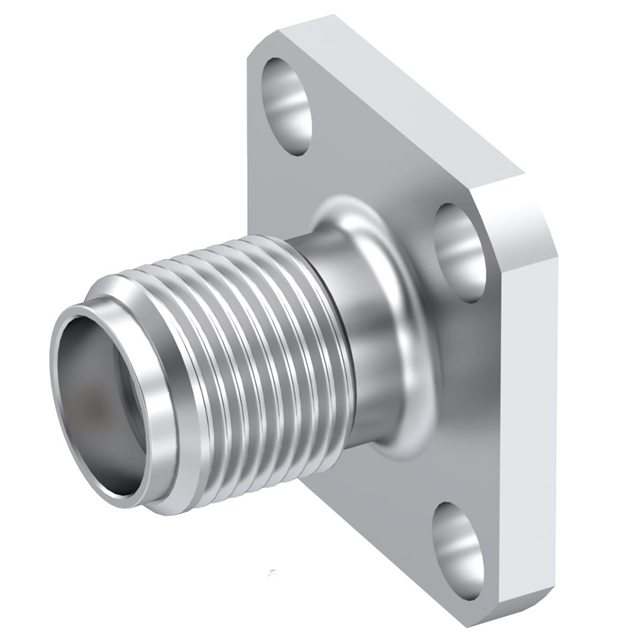

SMA / STRAIGHT JACK FEMALE PASSI
| Part | Mating Cycles | Center Contact Plating | Dielectric Material | Body Material | Operating Temperature [Min] | Operating Temperature [Max] | Impedance | Housing Color | Fastening Type | Number of Ports | Connector Type | Connector Style | Frequency - Max [Max] | Mounting Type | Contact Termination | Center Contact Material | Shield Termination | Mounting Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | 500 | Gold | Polytetrafluoroethylene (PTFE) | Stainless Steel | -65 ░C | 165 °C | 50 Ohms | Silver | Threaded | 1 | Female Socket Jack | SMA | 18 GHz | Panel Mount | Compression | Beryllium Copper | Screw | Flange |
Radiall USA, Inc. | 500 | Gold | Polytetrafluoroethylene (PTFE) | Stainless Steel | -65 ░C | 165 °C | 50 Ohms | Threaded | 1 | Female Socket Jack | SMA | 18 GHz | Panel Mount | Solder | Beryllium Copper | Solder | Flange |
