171335 Series
Manufacturer: Molex
Beta
⌘K

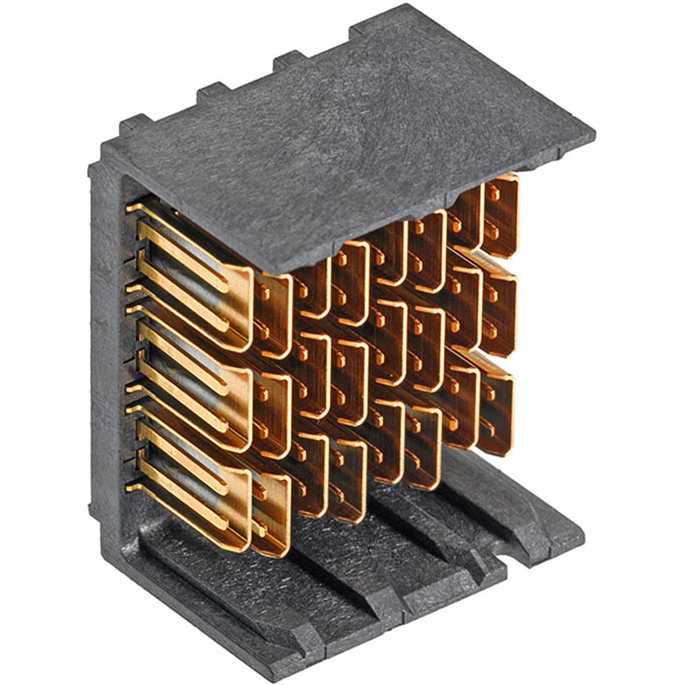

IMPEL 90 OHM, 3 PAIR VERTICAL BACKPLANE HEADER, 1.90MM PITCH, UNGUIDED, OPEN ENDWALLS, 8 COLUMNS, 48 CIRCUITS, PIN LENGTH 5.50MM, PLATED THROUGH HOLE DIMENSION 0.36MM
| Part | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Material Flammability Rating | Connector Usage | Contact Finish | Features | Number of Columns | Connector Type | Connector Style | Pitch | Pitch | Color | Contact Layout, Typical | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Termination | Number of Positions | Number of Positions Loaded | Number of Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | 0.75 A | -55 C | 85 °C | 29.9 VAC/DC | UL94 V-0 | Backplane | Gold | Shielded | 8 | Header Male Pins and Blades | Impel™ | 1.9 mm | 0.075 in | Black | 24 Differential Pairs | Through Hole | 30 Áin | 0.76 Ám | Press-Fit | 48 | All | 6 |
 Molex | Gold | Shielded | 8 | Header Male Pins | Impel Guide Right | 1.9 mm | 0.075 in | Black | 24 Differential Pairs | Through Hole | 30 Áin | 0.76 Ám | Press-Fit | 48 | All | 6 | ||||||
 Molex | Backplane | Gold | Shielded | 8 | Header Male Pins and Blades | Impel™ | 1.9 mm | 0.075 in | 24 Differential Pairs | Through Hole | 30 Áin | 0.76 Ám | Press-Fit | All | 9 |
