PTTB Series

Catalog

DIN RAIL TERMINAL BLOCKS PTTB 2,5-LA 60 RD

Part	Current - UL	Voltage - IEC	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Termination Style	Voltage - UL	Type	Number of Positions	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Features	Color	Number of Levels	Number of Levels	Current - IEC	Terminal - Width [y]	Features	Material - Insulation	Stripping Length	Material Flammability Rating	Mounting Type	Housing Color

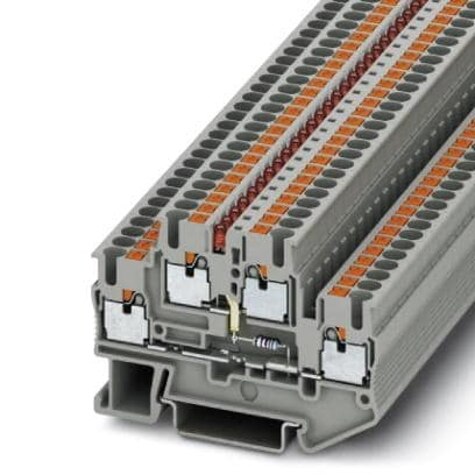

Phoenix Contact 3211469	20 A	500 V	0.14 mm²	4 mm²	Push In Spring	300 V	Feed Through	4	12 AWG	24 AWG	LED	Gray	2	Connected	20 A	5.2 mm
Phoenix Contact 3210570	20 A	500 V	0.14 mm²	4 mm²	Push In Spring	600 V	Feed Through	4	12 AWG	26 AWG		Blue	2		22 A	5.2 mm
Phoenix Contact 3210925		500 V	0.14 mm²	4 mm²	Push In Spring		Feed Through	4	12 AWG	26 AWG	Resistor	Gray	2	Connected	20 A	5.2 mm	499 Ohm

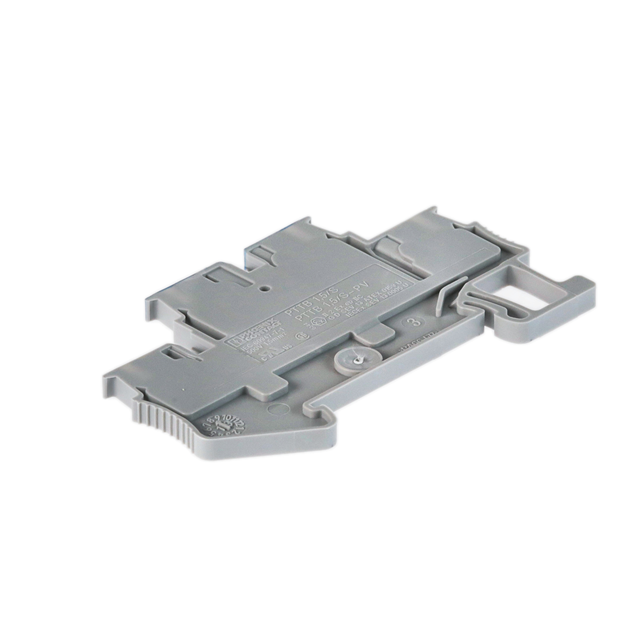

Phoenix Contact 3208544	5 A	500 V	0.14 mm²	1.5 mm²	Push In Spring	600 V	Feed Through	4	14 AWG	26 AWG		Gray	2		16 A	3.5 mm		Nylon Polyamide (PA)	8 mm	UL94 V-0
Phoenix Contact 3212443	5 A	500 V	0.14 mm²	1.5 mm²	Plug Receptacles Push In Spring		Plug Connection	4	14 AWG	26 AWG			2		16 A	3.5 mm					DIN Rail	Red
