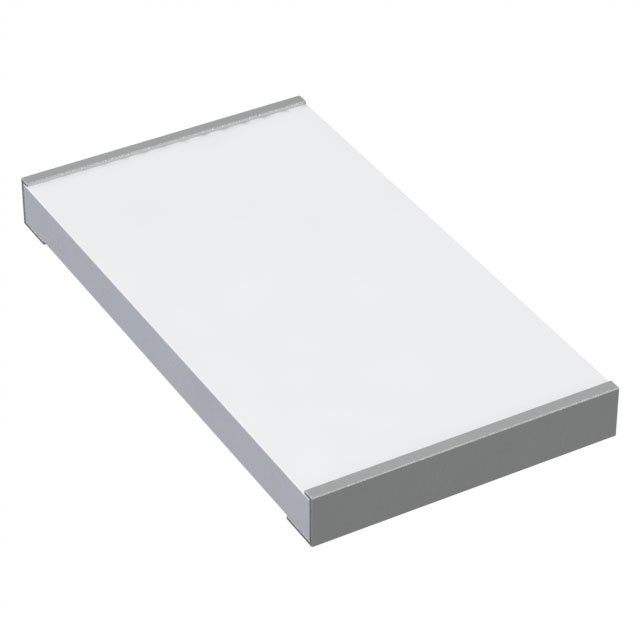

KRL Series
Manufacturer: Susumu
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
CURRENT SENSE RESISTORS - SMD CURRENT SENSING RESISTORS 0805 0.5W 0.22 OHM 1% 50PPM, AEC Q200 QUALIFIED
| Part | Power (Watts) | Power (Watts) Options | Composition | Operating Temperature (Max) | Operating Temperature (Min) | Size / Dimension Length | Size / Dimension Width | Temperature Coefficient | Ratings | Package / Case | Number of Terminations | Resistance | Features | Height - Seated (Max) | Tolerance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Susumu | 500 mW | 1/2W | Metal Foil | 175 °C | -55 °C | 0.079 in | 0.049 in | 50 ppm/°C | AEC-Q200 | 0805 (2012 Metric) | 2 | 220 mOhms | Automotive AEC-Q200 Current Sense | 0.028 in | 1 % |
 Susumu | 3 W | Metal Foil | 175 °C | -55 °C | 0.122 in | 0.248 in | 50 ppm/°C | AEC-Q200 | 1225 Wide 2512 (6432 Metric) | 2 | 5 mOhms | Automotive AEC-Q200 Current Sense | 0.028 in | 1 % | |
 Susumu | 1 W | Metal Foil | 155 °C | -55 °C | 0.049 in | 0.079 in | 50 ppm/°C | AEC-Q200 | 0508 Wide 0805 (2012 Metric) | 2 | 15 mOhms | Automotive AEC-Q200 Current Sense | 0.028 in | 1 % | |
Susumu | 1 W | Metal Foil | 155 °C | -55 °C | 0.049 in | 0.079 in | 50 ppm/°C | AEC-Q200 | 0508 Wide 0805 (2012 Metric) | 2 | 47 mOhms | Automotive AEC-Q200 Current Sense | 0.028 in | 1 % | |
 Susumu | 5 W | Metal Foil | 155 °C | -55 °C | 0.433 in | 0.197 in | 50 ppm/°C | AEC-Q200 | Nonstandard | 2 | 330 mOhms | Automotive AEC-Q200 Current Sense | 0.033 in | 1 % | |
 Susumu | 750 mW | 3/4W | Metal Foil | 155 °C | -55 °C | 0.126 in | 0.063 in | 50 ppm/°C | AEC-Q200 | 1206 (3216 Metric) | 2 | 100 mOhms | Automotive AEC-Q200 Current Sense | 0.028 in | 1 % |
Susumu | 6 W | Metal Foil | 175 °C | -55 °C | 0.197 in | 0.433 in | 150 ppm/¯C | AEC-Q200 | 2043 Wide 4320 (11050 Metric) | 2 | 1 mOhms | Automotive AEC-Q200 Current Sense | 0.028 in | 5 % | |
 Susumu | 3 W | Metal Foil | 155 °C | -55 °C | 0.122 in | 0.248 in | 50 ppm/°C | AEC-Q200 | 1225 Wide 2512 (6432 Metric) | 2 | 8 mOhms | Automotive AEC-Q200 Current Sense | 0.028 in | 1 % | |
 Susumu | 750 mW | 3/4W | Metal Foil | 175 °C | -55 °C | 0.126 in | 0.063 in | 50 ppm/°C | AEC-Q200 | 1206 (3216 Metric) | 2 | 82 mOhms | Automotive AEC-Q200 Current Sense | 0.028 in | 1 % |
Susumu | 500 mW | 1/2W | Metal Foil | 175 °C | -55 °C | 0.079 in | 0.049 in | 100 ppm/°C | 0805 (2012 Metric) | 2 | 9 mOhms | Automotive AEC-Q200 Current Sense | 0.028 in | 2 % |
