MEAS SP Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

STRING POT 25 INCH RANGE

Part	Linear Range [Max]	Linear Range [Min]	Linear Range [Max]	Linear Range [Min]	Linearity	Output [Max]	Output [Min]	Package / Case	Voltage - Supply	Voltage - Supply [Max]	Voltage - Supply [Min]	For Measuring	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Actuator Type	Termination Style	Resistance Tolerance	Resistance	Technology	Output	Linear Range [Min] [x]	Linear Range [Max] [x]
TE Connectivity AMP Connectors SP3-25	635 mm	0 mm	25 "	0 "	0.25 %	10 V 20 mA	0 mV 4 mA	Box with Connector	8 V 40 V	32 VDC	12 VDC	Linear Position	71 °C	-18 °C	Chassis Mount	String Potentiometer	Wire Leads
TE Connectivity AMP Connectors SP1-4-3
TE Connectivity AMP Connectors SE1-25
TE Connectivity AMP Connectors SP1-50	1270 mm	0 mm	50 in	0 "				Box with Connector	30 VDC			Linear Position	70 °C	-18 °C	Panel Mount	String Potentiometer	Solder Lug	10%	10000 Ohms	Resistive	Analog Voltage

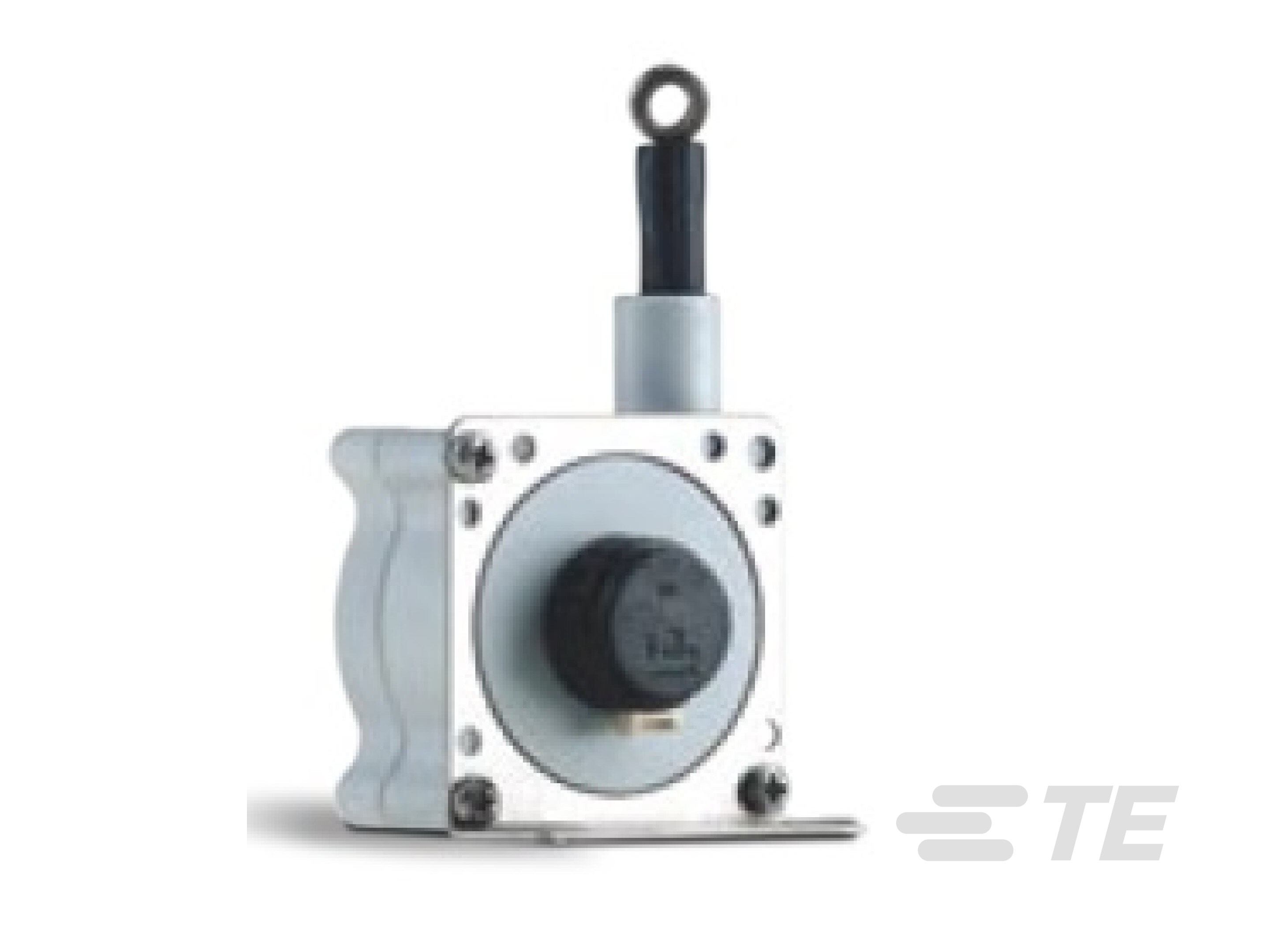

TE Connectivity AMP Connectors SE1-50								Box with Connector				Linear Position	85 °C	-10 °C	Chassis Mount	String Potentiometer	Connector				Quadrature TTL	0 mm	50 "
TE Connectivity AMP Connectors SPD-12-3	317 mm	0 mm	12.5 in	0 "		20 mA	4 mA	Box with Connector		40 VDC	8 V	Linear Position	70 °C	-40 C	Custom	String Potentiometer	Connector			Resistive
TE Connectivity AMP Connectors SPD-50-3	1270 mm	0 mm	50 in	0 "		20 mA	4 mA	Box with Connector		40 VDC	8 V	Linear Position	70 °C	-40 C	Custom	String Potentiometer	Connector			Resistive
TE Connectivity AMP Connectors SP2-12	317 mm	0 mm	12.5 in	0 "				Box with Wire Leads	30 VDC			Linear Position	71 °C	-18 °C	Panel Mount	String Potentiometer	Wire Leads	10%	10000 Ohms	Resistive	Analog Voltage

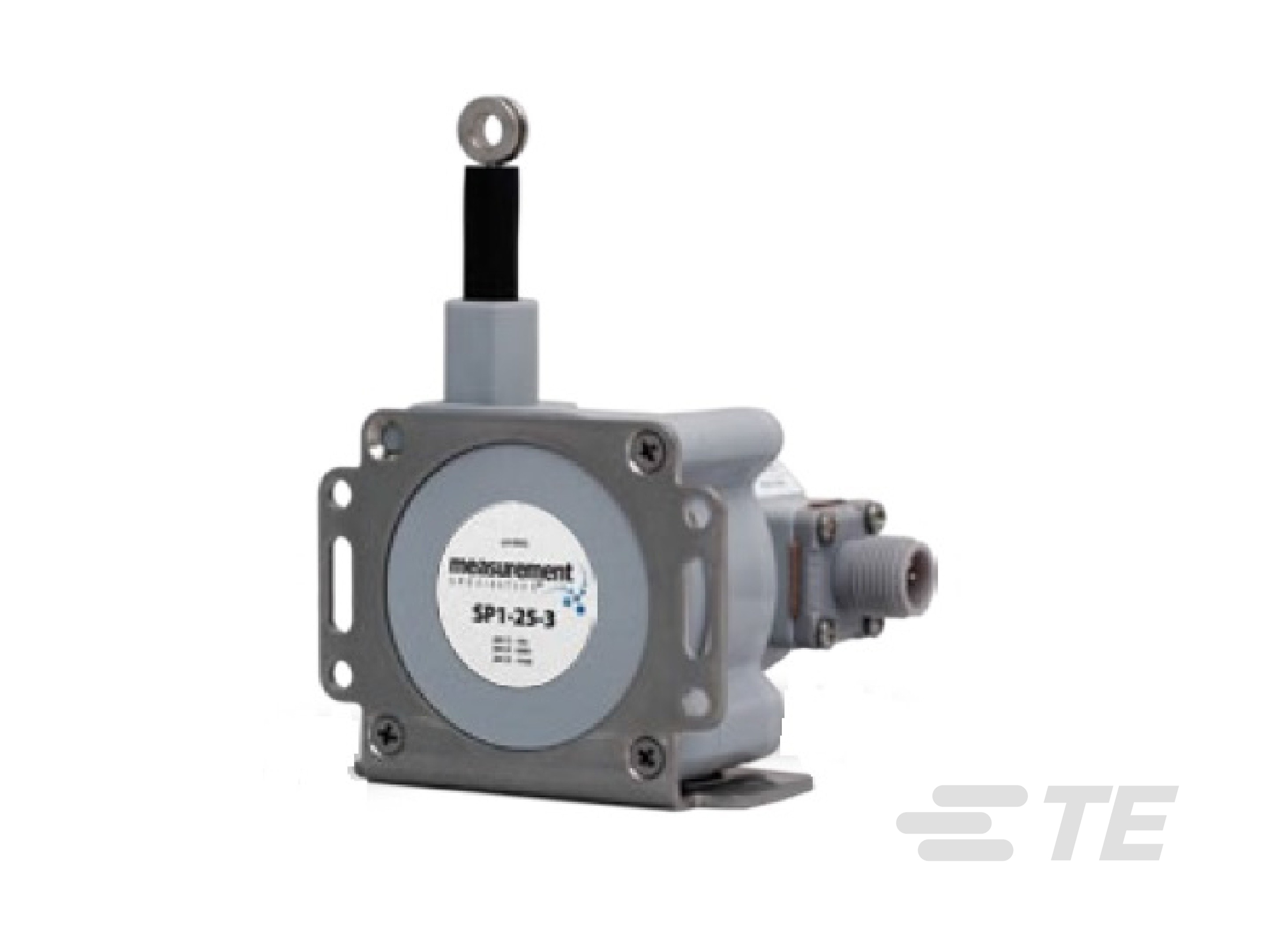

TE Connectivity AMP Connectors SP1-12	317 mm	0 mm	12.5 in	0 "				Box with Connector	30 VDC			Linear Position	70 °C	-18 °C	Panel Mount	String Potentiometer	Solder Lug	10%	10000 Ohms	Resistive	Analog Voltage
TE Connectivity AMP Connectors SP2-50	1270 mm	0 mm	50 in	0 "				Box with Wire Leads	30 VDC			Linear Position	71 °C	-18 °C	Panel Mount	String Potentiometer	Wire Leads	10%	10000 Ohms	Resistive	Analog Voltage
