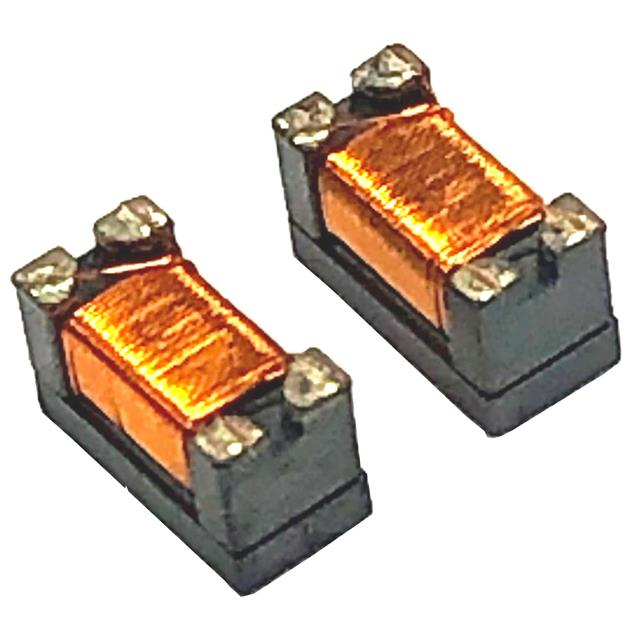

BWDM Series

Catalog

RF INDUCTORS - SMD CHILISIN RF INDUCTOR MINIATURE SMD TYPE COMMON MODE FILTER

Part	Height (Max) [z]	Height (Max) [z]	Number of Lines	Operating Temperature [Min]	Operating Temperature [Max]	DC Resistance (DCR) (Max) [Max]	Filter Type	Voltage Rating - DC	Package / Case	Mounting Type	Current Rating (Max) [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Inductance @ Frequency
Pulse Electronics BWDM00341620600X00	0.087 in	2.2 mm	2	-40 C	105 ░C	1.7 Ohm	Signal Line	50 VDC	Horizontal 4 PC Pad	Surface Mount	200 mA	3.4 mm	0.063 "	1.6 mm	0.134 in	60 µH
