SMA-A0207 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
MELF RES, AUTO, METAL FILM, 6K8, 0207
| Part | Ratings | Resistance | Power (Watts) | Size / Dimension [diameter] | Size / Dimension [x] | Size / Dimension [diameter] | Size / Dimension [x] | Tolerance | Number of Terminations [custom] | Composition | Operating Temperature [Max] | Operating Temperature [Min] | Supplier Device Package | Package / Case | Temperature Coefficient | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

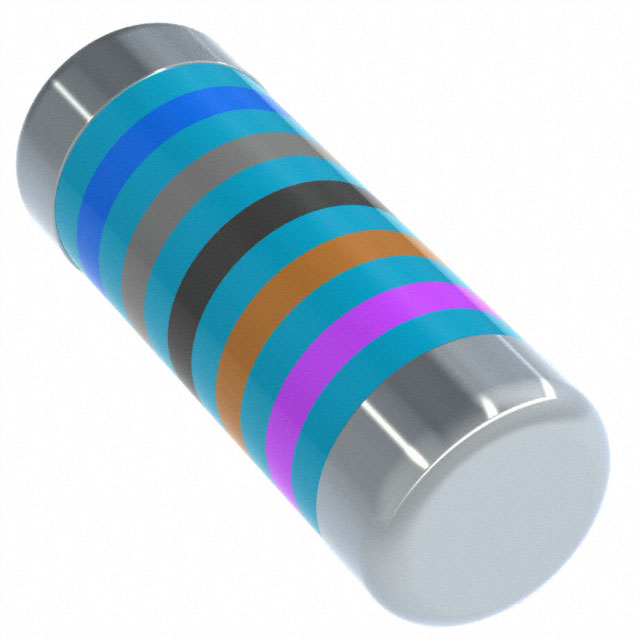

 TE Connectivity AMP Connectors | AEC-Q200 | 6.8 kOhms | 1 W | 0.087 " | 0.232 " | 2.2 mm | 5.9 mm | 0.1 % | 2 | Metal Film | 155 C | -55 C | 0207 | MELF 0207 | 15 ppm/°C | Automotive AEC-Q200 |
 TE Connectivity AMP Connectors | AEC-Q200 | 56 kOhms | 1 W | 0.087 " | 0.232 " | 2.2 mm | 5.9 mm | 0.1 % | 2 | Metal Film | 155 C | -55 C | 0207 | MELF 0207 | 15 ppm/°C | Automotive AEC-Q200 |
 TE Connectivity AMP Connectors | AEC-Q200 | 1.8 kOhms | 1 W | 0.087 " | 0.232 " | 2.2 mm | 5.9 mm | 0.1 % | 2 | Metal Film | 155 C | -55 C | 0207 | MELF 0207 | 15 ppm/°C | Automotive AEC-Q200 |

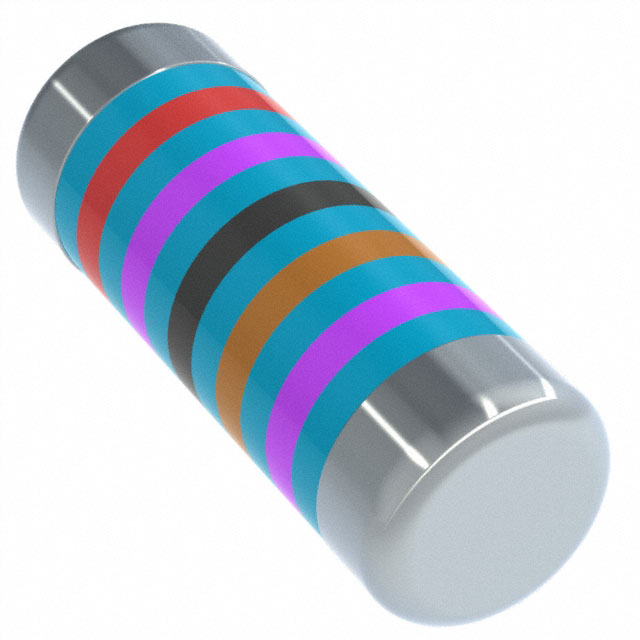

 TE Connectivity AMP Connectors | AEC-Q200 | 2.7 kOhms | 1 W | 0.087 " | 0.232 " | 2.2 mm | 5.9 mm | 0.1 % | 2 | Metal Film | 155 C | -55 C | 0207 | MELF 0207 | 15 ppm/°C | Automotive AEC-Q200 |
 TE Connectivity AMP Connectors | AEC-Q200 | 2200 Ohms | 1 W | 0.087 " | 0.232 " | 2.2 mm | 5.9 mm | 0.1 % | 2 | Metal Film | 155 C | -55 C | 0207 | MELF 0207 | 15 ppm/°C | Automotive AEC-Q200 |
