CBM-A232 Series

Catalog

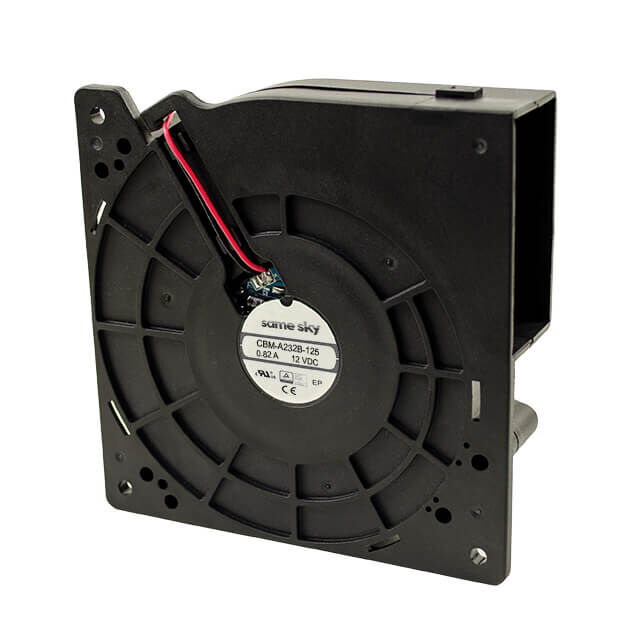

FAN BLOWER 120X32MM 12VDC WIRE

Part	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Width [y]	Bearing Type	Static Pressure	Static Pressure	Fan Type	Power (Watts)	RPM	Noise	Approval Agency	Size / Dimension	Size / Dimension [y]	Size / Dimension [x]	Weight	Weight	Features	Air Flow	Air Flow	Voltage - Rated	Lifetime @ Temp.	Voltage Range [Max]	Voltage Range [Min]	Material - Blade	Current Rating (Amps)
Same Sky (Formerly CUI Devices) CBM-A232B-125	2 Wire Leads	70 °C	-10 °C	32 mm	Ball	221.7 Pa	0.89 in H2O	Blower	9.8 W	2500 RPM	53.8 dB(A)	CE cURus TUV	Square/Rounded	120 mm	120 mm	0.553 lb	250.84 g	Auto Restart	35.9 CFM	1.01 m³/min	12 VDC
Same Sky (Formerly CUI Devices) CBM-A232B-125	2 Wire Leads	70 °C	-10 °C	32 mm	Ball	221.7 Pa	0.89 in H2O	Blower	9.8 W	2500 RPM	53.8 dB(A)	CE cURus TUV	Square/Rounded	120 mm	120 mm	0.553 lb	250.84 g	Auto Restart	35.9 CFM	1.01 m³/min	12 VDC	70000 Hrs	13.8 VDC	6 VDC	Polybutylene Terephthalate (PBT)	0.82 A
Same Sky (Formerly CUI Devices) CBM-A232B-121	2 Wire Leads	70 °C	-10 °C	32 mm	Ball	159.4 Pa	0.64 in H2O	Blower	5.4 Watts	2100 RPM	49.6 dB(A)	CE cURus TUV	Square/Rounded	120 mm	120 mm	0.553 lb	250.84 g	Auto Restart	31.4 CFM	0.879 m³/min	12 VDC	70000 Hrs	13.8 VDC	6 VDC	Polybutylene Terephthalate (PBT)	0.45 A
