152212 Series

Catalog

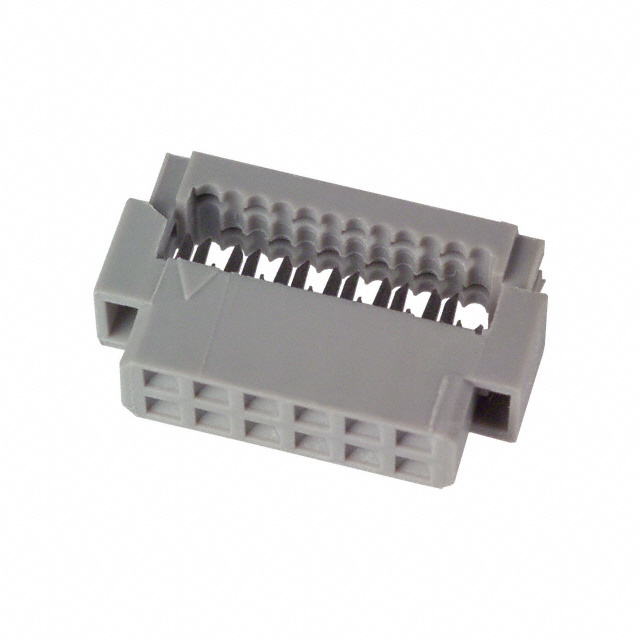

IDC CONNECTOR, IDC RECEPTACLE, FEMALE, 2 MM, 2 ROW, 12 CONTACTS, CABLE MOUNT

Part	Mounting Type	Features	Row Spacing	Row Spacing	Wire Gauge	Wire Type	Color	Number of Positions	Contact Type	Connector Type	Pitch [x]	Pitch [x]	Contact Finish Thickness	Contact Finish Thickness	Cable Termination	Number of Rows [custom]	Contact Finish
3M Electronic Specialty 152212-0100-GB	Free Hanging (In-Line)	Feed Through	2 mm	0.079 in	28 AWG	Ribbon Cable	Gray	12	Female Socket	Receptacle	0.079 in	2 mm	30 Áin	0.76 Ám	IDC	2	Gold
3M Electronic Specialty 152212-0100-GG	Free Hanging (In-Line)	Feed Through	2 mm	0.079 in	28 AWG	Ribbon Cable	Gray	12	Female Socket	Receptacle	0.079 in	2 mm	15 µin	0.38 µm	IDC	2	Gold
3M Electronic Specialty 152212-0110-GG	Free Hanging (In-Line)	Feed Through Polarizing Key	2 mm	0.079 in	28 AWG	Ribbon Cable	Gray	12	Female Socket	Receptacle	0.079 in	2 mm	15 µin	0.38 µm	IDC	2	Gold
3M Electronic Specialty 152212-0113-GB	Free Hanging (In-Line)	Feed Through Polarizing Key Strain Relief	2 mm	0.079 in	28 AWG	Ribbon Cable	Gray	12	Female Socket	Receptacle	0.079 in	2 mm	30 Áin	0.76 Ám	IDC	2	Gold
