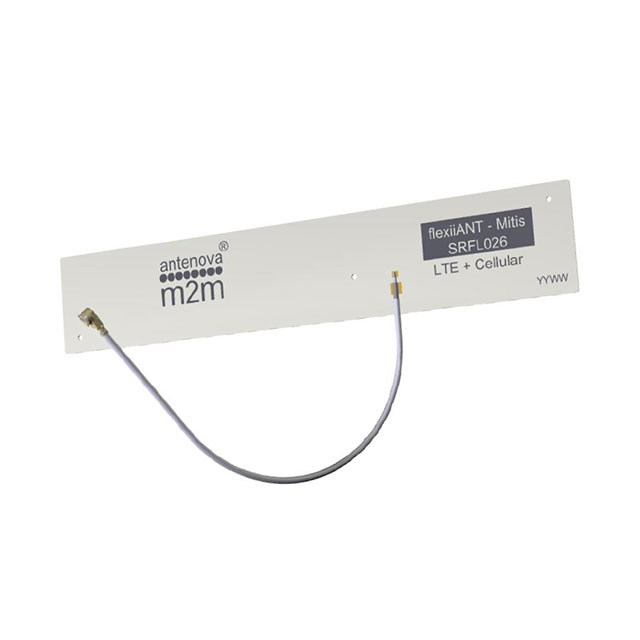

SRFL026 Series

Manufacturer: Antenova

Catalog

RF ANT 748MHZ/892MHZ FLAT PATCH

Part	Termination	Termination	Height (Max) [z]	Height (Max) [z]	VSWR	Number of Bands	Frequency (Center/Band)	Features	Features	Frequency Group	Frequency Range [Max]	Frequency Range [Min]	Mounting Type	Return Loss	Antenna Type	RF Family/Standard	Gain
Antenova SRFL026-100	IPEX MHF1	I-PEX MHF1 U.FL (UMCC)	0.15 mm	0.006 in	3.1	5	1.94 GHz 2.35 GHz 2.6 GHz 748 MHz 892 MHz	Cable	100 mm	Wide Band	2.17 GHz 2.4 GHz 2.69 GHz 798 MHz 960 MHz	1.71 GHz 2.3 GHz 2.5 GHz 698 MHz 824 MHz	Adhesive	-10 dB	Flat Patch	Cellular	3.5 dBi
Antenova SRFL026-200	IPEX MHF1	I-PEX MHF1 U.FL (UMCC)	0.15 mm	0.006 in	3.1	5	1.94 GHz 2.35 GHz 2.6 GHz 748 MHz 892 MHz	Cable - 200mm		Wide Band	2.17 GHz 2.4 GHz 2.69 GHz 798 MHz 960 MHz	1.71 GHz 2.3 GHz 2.5 GHz 698 MHz 824 MHz	Adhesive	-10 dB	Flat Patch	Cellular	3.5 dBi
Antenova SRFL026-150	IPEX MHF1	I-PEX MHF1 U.FL (UMCC)	0.15 mm	0.006 in	3.1	5	1.94 GHz 2.35 GHz 2.6 GHz 748 MHz 892 MHz	Cable - 150mm		Wide Band	2.17 GHz 2.4 GHz 2.69 GHz 798 MHz 960 MHz	1.71 GHz 2.3 GHz 2.5 GHz 698 MHz 824 MHz	Adhesive	-10 dB	Flat Patch	Cellular	3.5 dBi
