1ED44175 Series
Manufacturer: INFINEON
Beta
⌘K

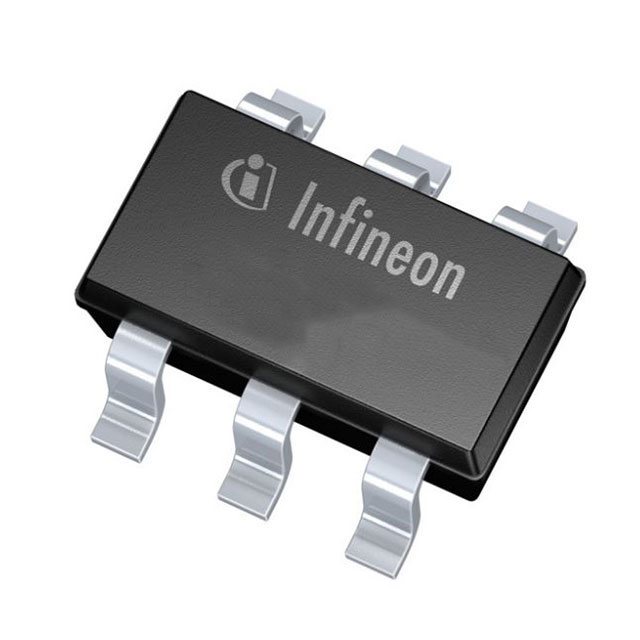

THE 1ED44175N01B IS A 25 V SINGLE-CHANNEL LOW-SIDE GATE DRIVER (6-LEAD PG-SOT23 PACKAGE)
| Part | Gate Type | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Supply [Min] | Voltage - Supply [Max] | Logic Voltage - VIL, VIH | Supplier Device Package | Input Type | Package / Case | Mounting Type | Current - Peak Output (Source, Sink) [custom] | Current - Peak Output (Source, Sink) [custom] | Rise / Fall Time (Typ) [custom] | Rise / Fall Time (Typ) [custom] | Number of Drivers | Channel Type | Driven Configuration |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 INFINEON | IGBT MOSFET (N-Channel) N-Channel MOSFET | 125 °C | -40 °C | 12.7 V | 20 V | 1.2 V 1.9 V | PG-SOT23-6-3 | Non-Inverting | SOT-23-6 | Surface Mount | 2.6 A | 2.6 A | 5 ns | 5 ns | 1 | Single | Low-Side |
