RV55 Series

Catalog

ROUTER LTE NA DC CABLE

Part	Voltage - Supply [Max]	Voltage - Supply [Min]	Frequency	Sensitivity	Applications	Data Rate (Max) [Max]	Modulation or Protocol	Interface

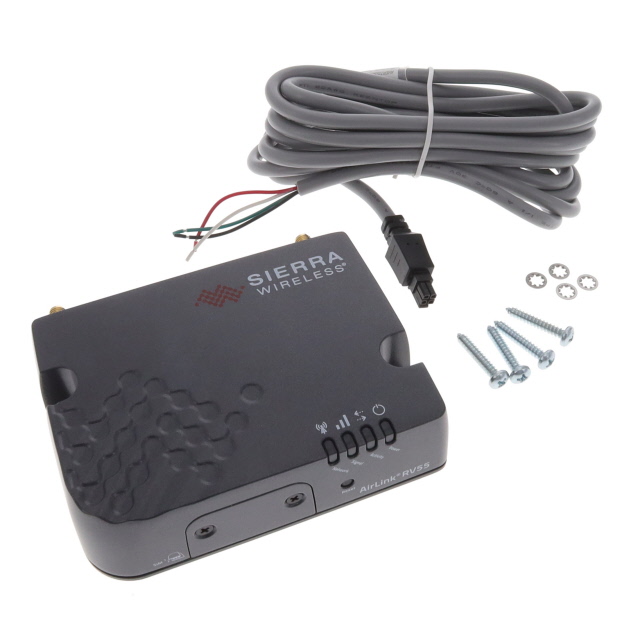

Semtech Corporation RV55_1104335	36 V	7 V	1.7 GHz 1.9 GHz 700 MHz 850 MHz	-160 dBm	General Purpose	150 Mbps	Cellular HSPA HSPA+ LTE	Ethernet RJ-45 RS-232 USB

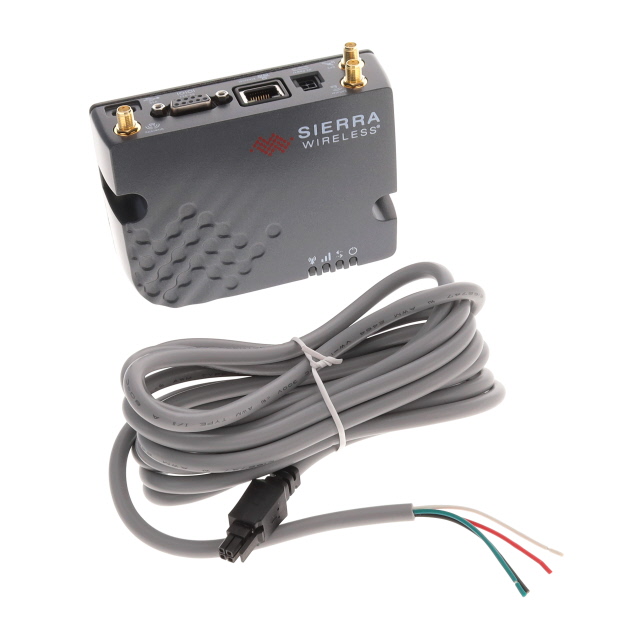

Semtech Corporation RV55_1104303	36 V	7 V	1.5 GHz 1.8 GHz 1.9 GHz 2.1 GHz 2.3 GHz 2.6 GHz 700 MHz 800 MHz 850 MHz 900 MHz	-160 dBm	General Purpose	150 Mbps	Cellular EDGE GPRS GSM HSPA+ LTE WCDMA	Ethernet RJ-45 RS-232 USB

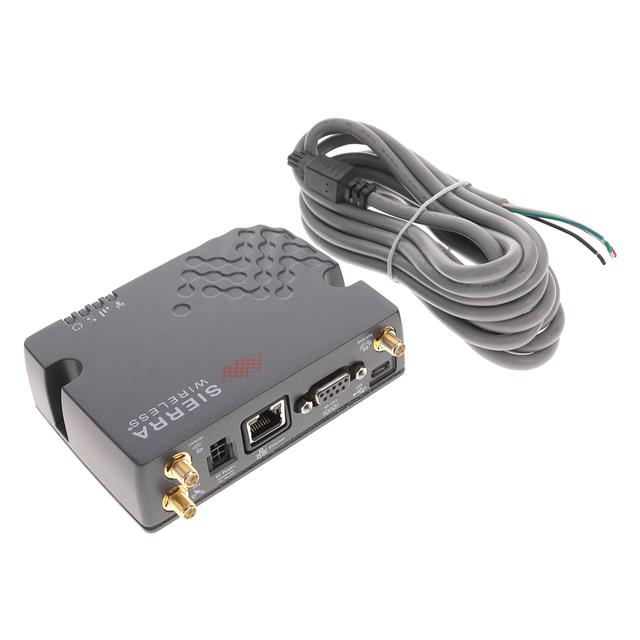

Semtech Corporation RV55_1104302	36 V	7 V	1.5 GHz 1.8 GHz 1.9 GHz 2.1 GHz 2.3 GHz 2.6 GHz 700 MHz 800 MHz 850 MHz 900 MHz	-160 dBm	General Purpose	150 Mbps	Cellular EDGE GPRS GSM HSPA+ LTE WCDMA	Ethernet RJ-45 RS-232 USB

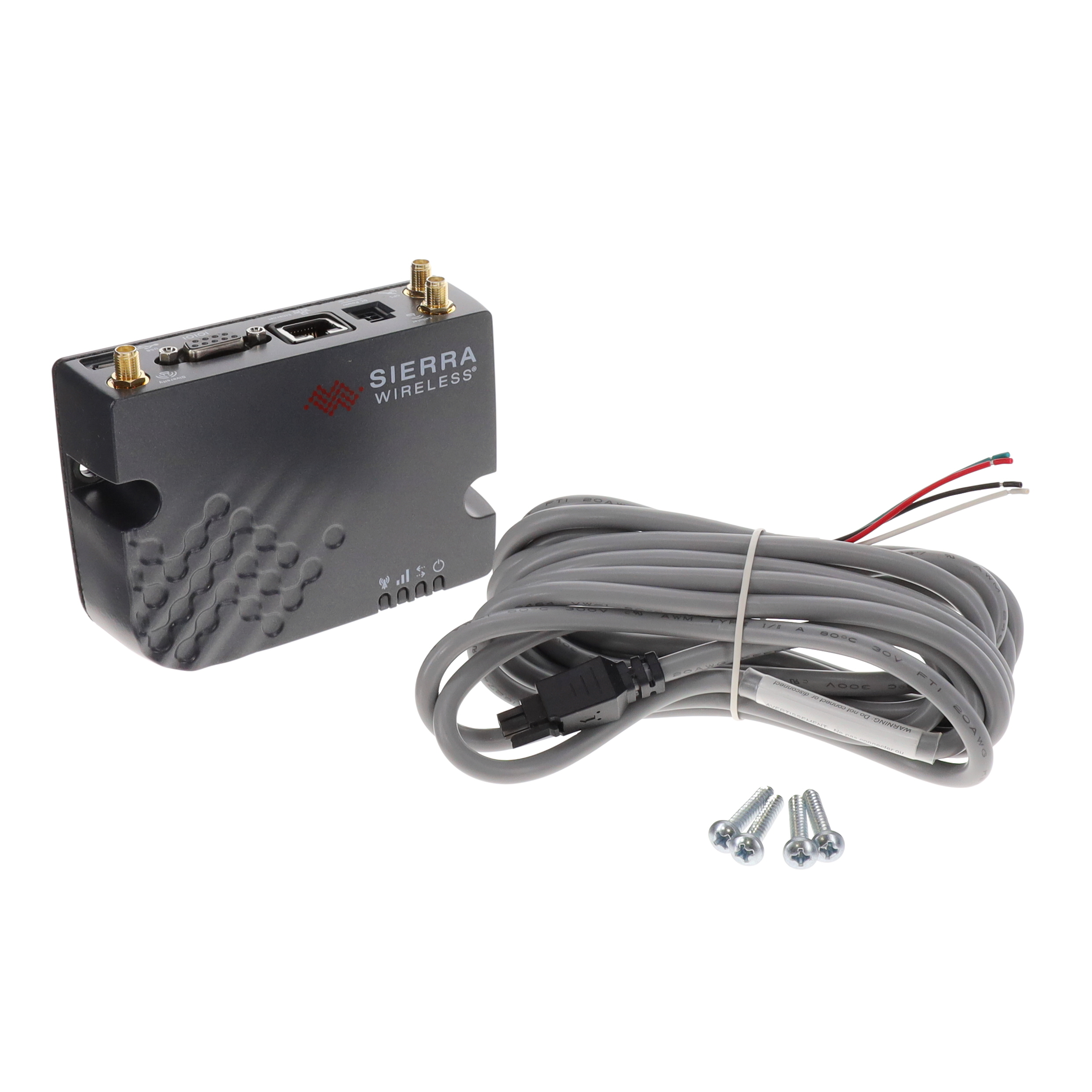

Semtech Corporation RV55_1104332	36 V	7 V	1.8 GHz 1.9 GHz 2.1 GHz 700 MHz 800 MHz 850 MHz 900 MHz	-160 dBm	General Purpose	300 Mbps	Cellular EDGE GPRS GSM LTE	Ethernet RJ-45 RS-232 USB

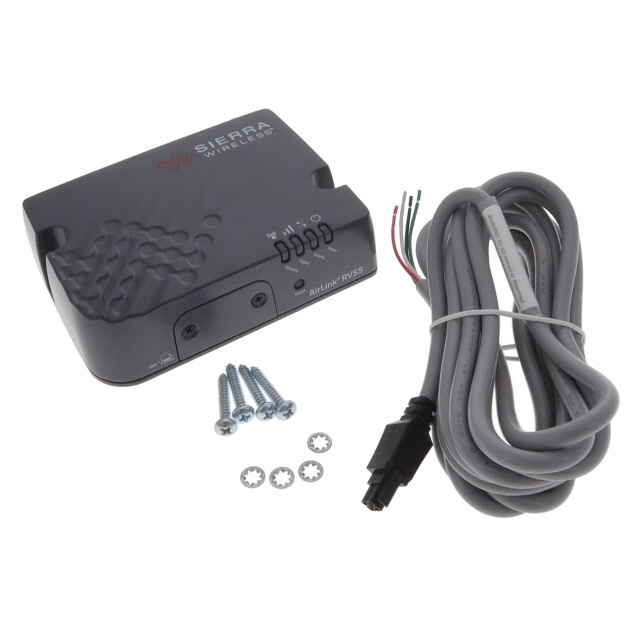

Semtech Corporation RV55_1104333	36 V	7 V	1.5 GHz 1.8 GHz 1.9 GHz 2.1 GHz 2.3 GHz 2.6 GHz 700 MHz 800 MHz 850 MHz 900 MHz	-160 dBm	General Purpose	150 Mbps	Cellular EDGE GPRS GSM HSPA+ LTE WCDMA	Ethernet RJ-45 RS-232 USB
Semtech Corporation RV55_1104331	36 V	7 V	1.8 GHz 1.9 GHz 2.1 GHz 700 MHz 800 MHz 850 MHz 900 MHz	-160 dBm	General Purpose	300 Mbps	Cellular EDGE GPRS GSM LTE	Ethernet RJ-45 RS-232 USB
