86218CY Series
Manufacturer: ALPHA WIRE
Beta
⌘K

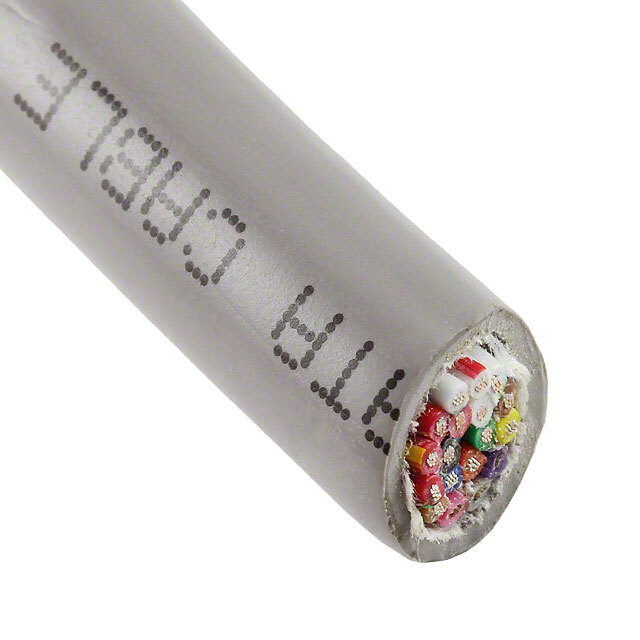

CABLE 18COND 24AWG SHLD 100'
| Part | Shield Coverage | Shield Material | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket Color | Wire Gauge | Cable Type | Features | Voltage | Length [x] | Length [x] | Number of Conductors | Conductor Insulation | Jacket (Insulation) Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Ratings | Conductor Material | Shield Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 90 % 100 % | Aluminum Copper Tinned | 34 AWG | 10 | 1.016 mm | 0.04 in | Slate | 24 AWG | Multi-Conductor | Biological Compatibility Drain Wire | 300 VDC | 100 ft | 30.5 m | 18 | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) | 8.31 mm | 0.327 " | ISO 10993 UL Style 2661 | Copper Tinned | Braid Foil |
