LTC7806 Series
Manufacturer: Analog Devices Inc./Maxim Integrated
Beta
⌘K

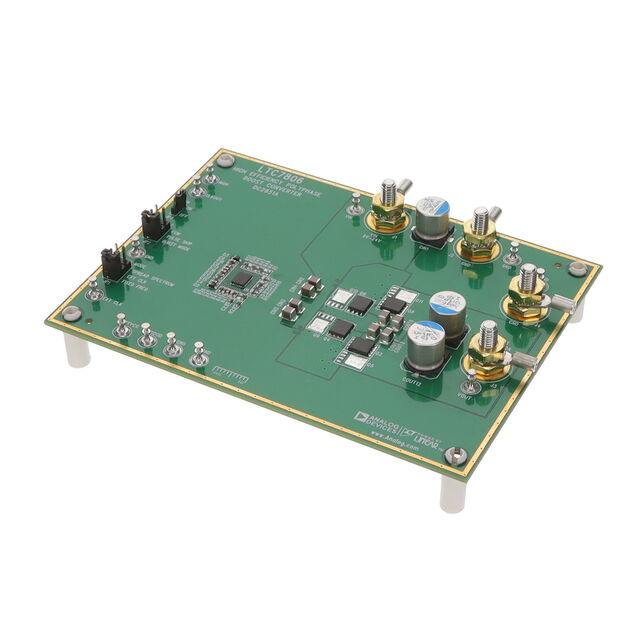

POWER MANAGEMENT IC DEVELOPMENT TOOLS LTC7806 DEMO BD, 6-30VIN/24VOUTA.10A
| Part | Supplied Contents | Outputs and Type | Outputs and Type | Board Type | Frequency - Switching | Main Purpose | Voltage - Output | Current - Output | Contents | Voltage - Input [Max] | Voltage - Input [Min] | Regulator Topology | Utilized IC / Part | Output Phases | Synchronous Rectifier | Control Features | Frequency - Switching [Min] | Frequency - Switching [Max] | Duty Cycle (Max) [Max] | Output Type | Output Configuration | Topology | Supplier Device Package | Function | Number of Outputs | Clock Sync | Voltage - Supply (Vcc/Vdd) [Min] | Voltage - Supply (Vcc/Vdd) [Max] | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Analog Devices Inc./Maxim Integrated | Board(s) | 1 | 1 Non-Isolated Output Non-Isolated | Fully Populated | 350 kHz | DC/DC Step Up | 24 V | 10 A | Board(s) | 36 V | 6 V | Boost | LTC7806 | |||||||||||||||||||
 Analog Devices Inc./Maxim Integrated | 2 | Current Limit Frequency Control Power Good Soft Start | 100 kHz | 3 MHz | 100 % | Transistor Driver | Positive | Boost | 28-QFN (4x5) | Step-Up | 1 | 4.5 V | 40 V | Surface Mount Wettable Flank | -40 °C | 150 °C | 28-WFQFN Exposed Pad | |||||||||||||||
Analog Devices Inc./Maxim Integrated | 2 | Current Limit Frequency Control Power Good Soft Start | 100 kHz | 3 MHz | 100 % | Transistor Driver | Positive | Boost | 28-QFN (4x5) | Step-Up | 1 | 4.5 V | 40 V | Surface Mount Wettable Flank | -40 °C | 150 °C | 28-WFQFN Exposed Pad |
