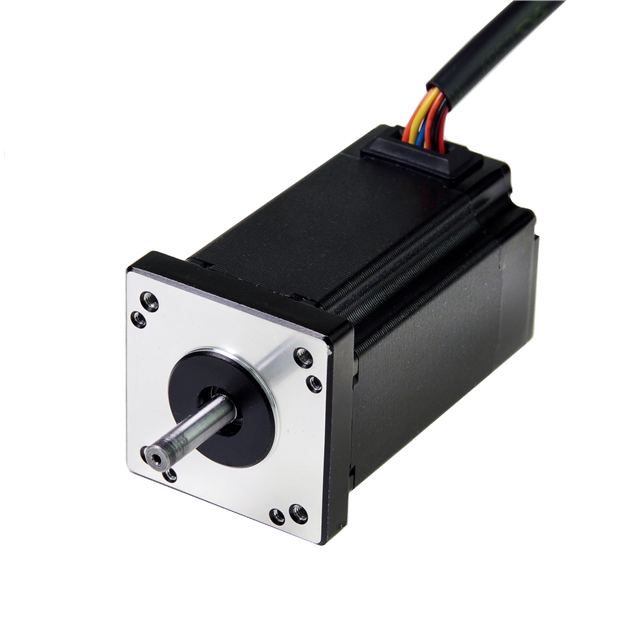

BL17E28 Series
Manufacturer: Lin Engineering
Beta
⌘K
BLDC MOTOR
| Part | Approval Agency | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Hole Spacing [custom] | Mounting Hole Spacing [custom] | Motor Type | Type | Torque - Max Momentary (oz-in / mNm) | Torque - Max Momentary (oz-in / mNm) | Diameter - Shaft [diameter] | Diameter - Shaft [diameter] | Torque - Rated (oz-in / mNm) | Torque - Rated (oz-in / mNm) | Power - Rated | RPM | Function | Voltage - Rated | Length - Shaft and Bearing [x] | Length - Shaft and Bearing [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Lin Engineering | CE | 1.654 in | 42 mm | 1.654 in | 42 mm | -20 ░C | 50 °C | 31 mm | 1.22 in | Brushless (BLDC) | DC Motor | 40.78 oz-in | 288 mNm | 0.197 in | 5 mm | 144 mNm | 20.39 oz-in | 60 W | 4000 RPM | Standard | 48 VDC | 0.791 in | 20.1 mm |
