2834114 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

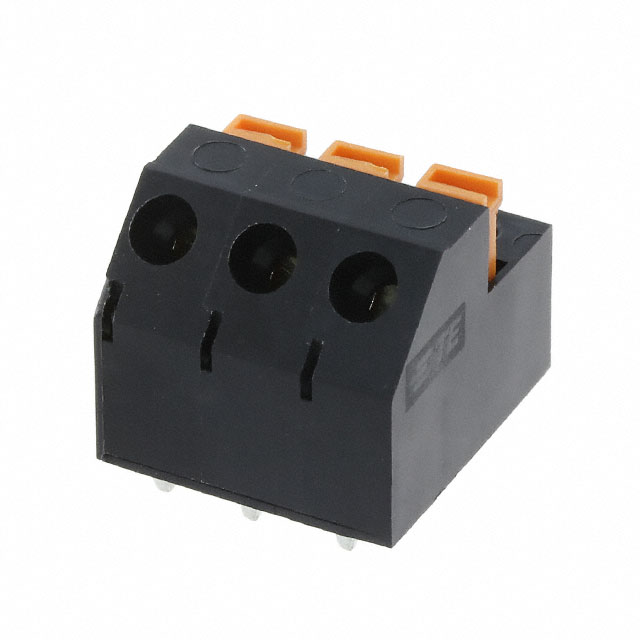

TERM BLK 3POS TOP ENT 5.08MM PCB
| Part | Mating Orientation | Operating Temperature [Min] | Operating Temperature [Max] | Wire Termination | Pitch [x] | Pitch [x] | Color | Wire Gauge [Min] | Wire Gauge [Max] | Features | Number of Levels | Contact Material - Plating [custom] | Mounting Type | Voltage | Positions Per Level | Current |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Vertical with Board | -40 °C | 105 ░C | Push-In Spring Screwless - Leg Spring | 0.2 in | 5.08 mm | Gray | 14 AWG | 20 AWG | Push Button Actuated | 1 | Brass - Tin Plated | Through Hole | 300 V | 3 | 12 A |
