ED1550 Series
Manufacturer: On Shore Technology Inc.
Beta
⌘K

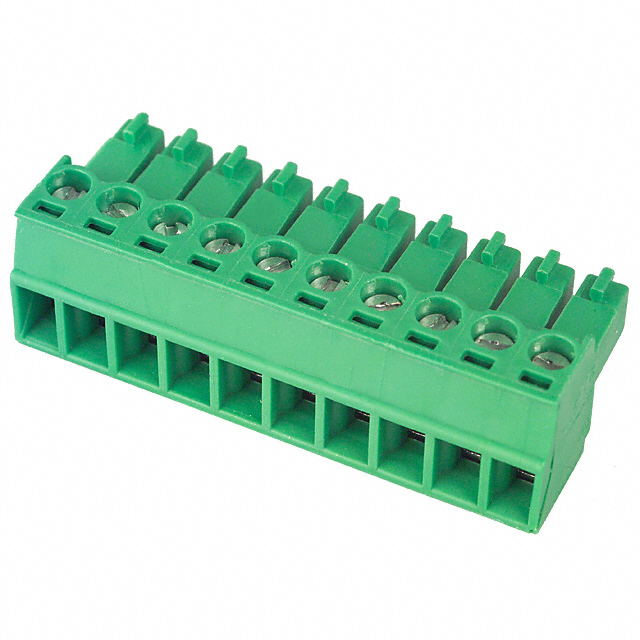

TERM BLOCK PLUG 10POS STR 3.5MM
| Part | Housing Material | Insulation Height | Insulation Height | Contact Material | Torque - Screw | Torque - Screw | Screw Size | Wire Gauge or Range - mm˛ | Material Flammability Rating | Wire Strip Length | Color | Wire Gauge or Range - mm² | Current - UL | Pitch | Pitch | Termination Style | Wire Gauge or Range - AWG [Max] | Wire Gauge or Range - AWG [Min] | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Plug Wire Entry | Positions Per Level | Voltage - UL | Number of Positions | Number of Levels | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 On Shore Technology Inc. | Polyamide (PA) Nylon | 11.1 mm | 0.437 in | Copper Tin Alloy | 3.5 Lb-In | 0.4 Nm | M2 | 1.5 mm˛ | UL94 V-0 | 7 mm | Green | 1.5 mm² | 8 A | 3.5 mm | 0.138 " | Screw | 28 AWG | 16 AWG | -30 ░C | 105 ░C | Free Hanging (In-Line) | 180 ° | 10 | 300 V | 10 | 1 | Plug Female Sockets |
