10037901 Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K

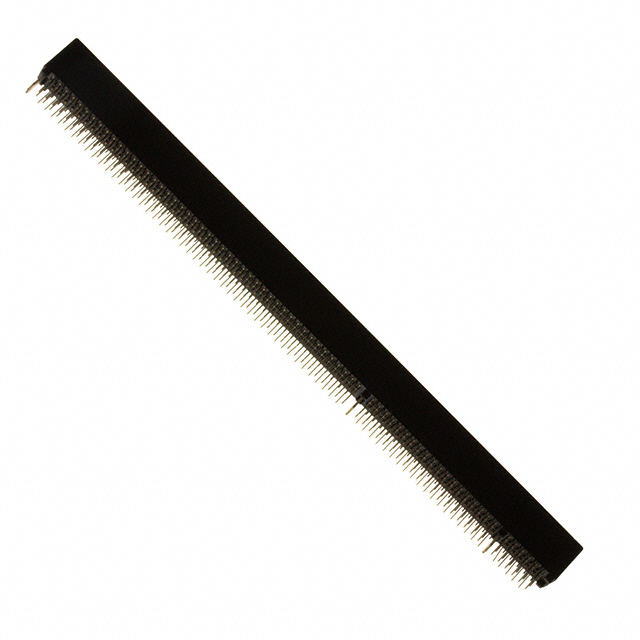

CONN PCI EXP FMALE 280POS 0.039
| Part | Features | Number of Positions | Number of Rows [custom] | Gender | Contact Finish Thickness | Mounting Type | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Pitch | Pitch | Contact Material | Color | Card Thickness | Card Thickness | Read Out | Contact Type | Contact Finish | Material - Insulation | Termination | Card Type | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol ICC (FCI) | Board Guide Locking Ramp | 280 | 2 | Female | Flash | Through Hole | 11 | 91 | 38 | -55 C | 85 °C | 1 mm | 0.039 in | Copper Alloy | Black | 1.57 mm | 0.062 in | Dual | Cantilever | Gold | Glass Filled Nylon Polyamide (PA) | Solder Staggered | PCI Express™ | ||
 Amphenol ICC (FCI) | Board Guide Locking Ramp | 280 | 2 | Female | Through Hole | 11 | 91 | 38 | -55 C | 85 °C | 1 mm | 0.039 in | Copper Alloy | Black | 1.57 mm | 0.062 in | Dual | Cantilever | Gold | Glass Filled Nylon Polyamide (PA) | Solder Staggered | PCI Express™ | 0.38 µm | 15 µin | |
 Amphenol ICC (FCI) | Board Guide Locking Ramp | 280 | 2 | Female | Through Hole | 11 | 91 | 38 | -55 C | 85 °C | 1 mm | 0.039 in | Copper Alloy | Black | 1.57 mm | 0.062 in | Dual | Cantilever | Gold | Glass Filled Nylon Polyamide (PA) | Solder Staggered | PCI Express™ | 0.38 µm | 15 µin | |
Amphenol ICC (FCI) | Board Lock | 280 | 2 | Female | Through Hole | 11 | 91 | 38 | -55 C | 85 °C | 2.54 mm | 0.1 " | Copper Alloy | Black | 1.57 mm | 0.062 in | Dual | Cantilever | Gold | Glass Filled Nylon Polyamide (PA) | Solder Staggered | PCI Express™ | 0.76 Ám | 30 Áin |
