3RT2628 Series

Manufacturer: Siemens

Catalog

CAP CONTACTOR 33KVAR 1NO+2NC 95-

Part	Release Time	Coil Power	Operate Time	Features	Coil Voltage [Min]	Coil Voltage [Max]	Contact Form	Mounting Type	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Switching Voltage [Max]	Contact Rating (Current)	Must Operate Voltage	Coil Voltage
Siemens 3RT26281NF35	50 ms	12 VA	70 ms	Auxiliary Contacts	95 VAC	130 VAC/DC	3PST-NO (3 Form A)	Chassis Mount DIN Rail	Screw Terminal	-25 °C	60 °C	690 VAC	47.6 A
Siemens 3RT26281AP05	16 ms	77 VA	40 ms	Auxiliary Contacts			3PST-NO (3 Form A)	Chassis Mount DIN Rail	Screw Terminal	-25 °C	60 °C	690 VAC	47.6 A	184 VAC	230 VAC

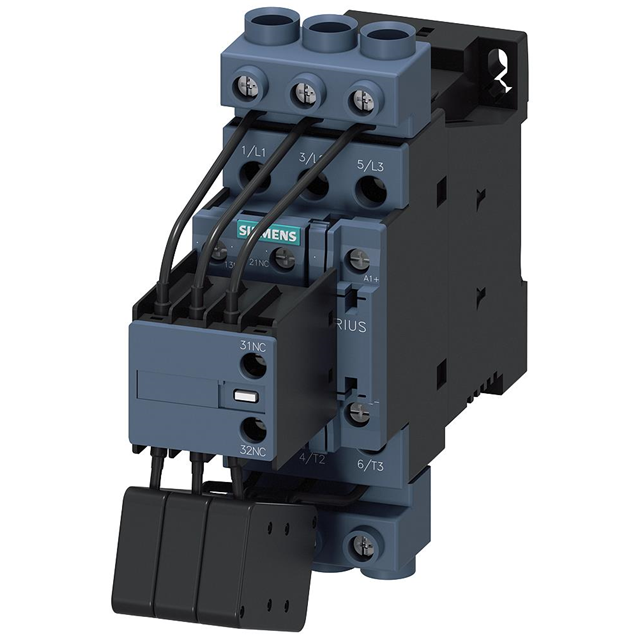

Siemens 3RT26281BB45	18 ms	5.9 W	170 ms	Auxiliary Contacts			3PST-NO (3 Form A)	Chassis Mount DIN Rail	Screw Terminal	-25 °C	60 °C	690 VAC	47.6 A	19.2 VDC	24 VDC
Siemens 3RT26281AC25	16 ms	77 VA	40 ms	Auxiliary Contacts			3PST-NO (3 Form A)	Chassis Mount DIN Rail	Screw Terminal	-25 °C	60 °C	690 VAC	47.6 A	19.2 VAC	24 VAC

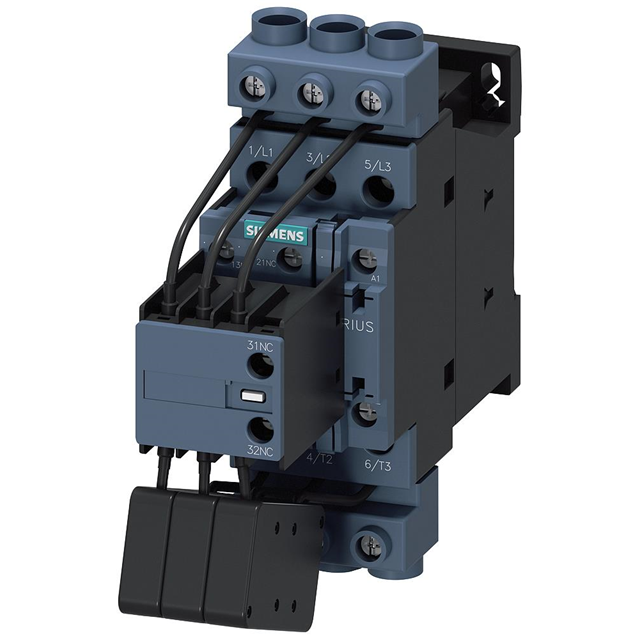

Siemens 3RT26281AB05	16 ms	77 VA	40 ms	Auxiliary Contacts			3PST-NO (3 Form A)	Chassis Mount DIN Rail	Screw Terminal	-25 °C	60 °C	690 VAC	47.6 A	19.2 VAC	24 VAC
Siemens 3RT26281NB35	50 ms	6.7 VA	70 ms	Auxiliary Contacts	21 VAC/DC	28 VAC/DC	3PST-NO (3 Form A)	Chassis Mount DIN Rail	Screw Terminal	-25 °C	60 °C	690 VAC	47.6 A
Siemens 3RT26281AF05	16 ms	77 VA	40 ms	Auxiliary Contacts			3PST-NO (3 Form A)	Chassis Mount DIN Rail	Screw Terminal	-25 °C	60 °C	690 VAC	47.6 A	88 VAC/DC	110 VAC/DC
Siemens 3RT26281AP65	16 ms	77 VA	40 ms	Auxiliary Contacts			3PST-NO (3 Form A)	Chassis Mount DIN Rail	Screw Terminal	-25 °C	60 °C	690 VAC	47.6 A	192 VAC	240 VAC/DC
Siemens 3RT26281AK65	16 ms	77 VA	40 ms	Auxiliary Contacts			3PST-NO (3 Form A)	Chassis Mount DIN Rail	Screw Terminal	-25 °C	60 °C	690 VAC	47.6 A	96 VAC	120 VAC
Siemens 3RT26281NP35	50 ms	14.7 VA	70 ms	Auxiliary Contacts	200 VAC/DC	280 VAC/DC	3PST-NO (3 Form A)	Chassis Mount DIN Rail	Screw Terminal	-25 °C	60 °C	690 VAC	47.6 A
