HLQ Series
Manufacturer: KYOCERA AVX
Beta
⌘K

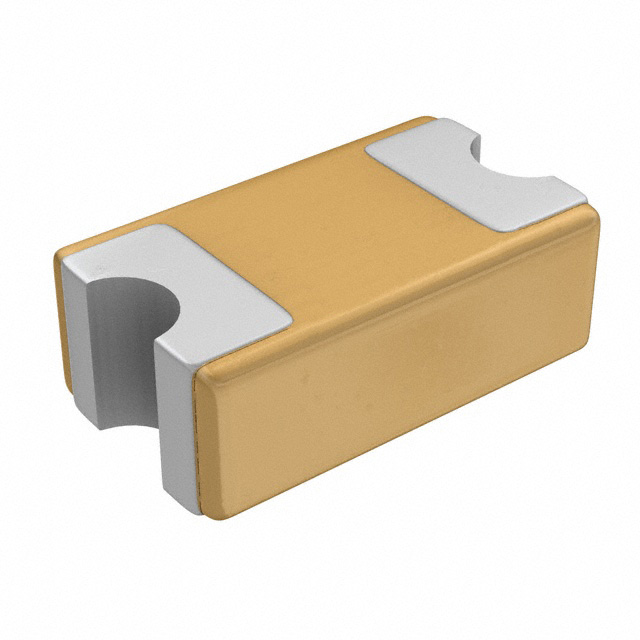

FIXED IND 3.6NH 200MA 350MOHM SM
| Part | Frequency - Self Resonant | Mounting Type | Current Rating (Amps) | Shielding | Operating Temperature [Min] | Operating Temperature [Max] | Supplier Device Package | Tolerance | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | DC Resistance (DCR) [Max] | Package / Case | Type | Material - Core | Q @ Freq | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Inductance Frequency - Test | Inductance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KYOCERA AVX | 7 GHz | Surface Mount | 0.2 A | Unshielded | -55 C | 125 °C | 0402 (1005 Metric) | 0.1 nH | 1 mm | 0.58 mm | 0.039 " | 0.023 " | 350 mOhm | 0402 (1005 Metric) | Multilayer | Non-Magnetic | 17 450 MHz | 0.018 " | 0.45 mm | 450 MHz | 3.6 nH |
