FSP030 Series
Manufacturer: FSP Technology Inc.
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K

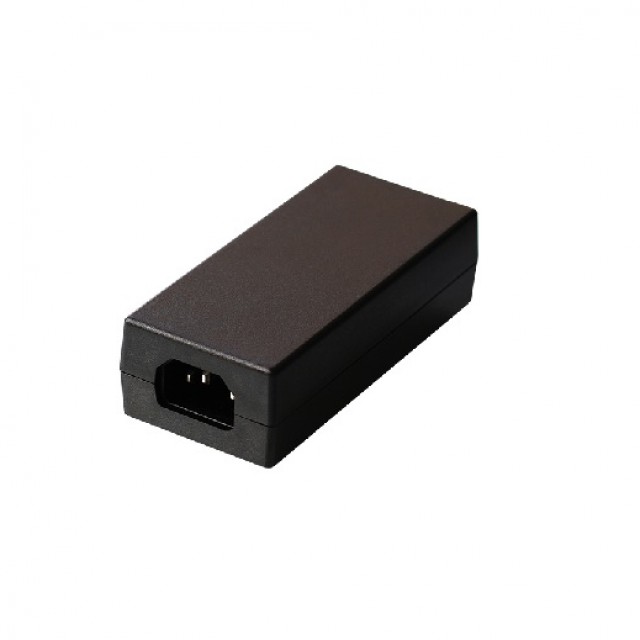

AC/DC DESKTOP ADAPTER 12V 30W
| Part | Size / Dimension Height | Size / Dimension Length | Size / Dimension Width | Standard Number | Current - Output (Max) | Power (Watts) | Efficiency | Output Connector | Output Connector Length | Output Connector O.D. | Output Connector I.D. | Region Utilized | Approval Agency | Applications | Voltage - Input (AC) Minimum | Voltage - Input (AC) Maximum | No Load Power Consumption (Max) | Operating Temperature (Max) | Operating Temperature (Min) | Form | Cord Length | Input Type | Polarization | Voltage - Output | Input Connector |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 FSP Technology Inc. | 1.26 in | 4.33 in | 1.97 in | 60601-1 | 2.5 A | 30 W | CoC Tier 2 Level VI | Barrel Plug | 11.5 mm | 5.5 mm | 2.5 mm | International | CE cULus FCC TUV VCCI | Medical | 85 VAC | 264 V | 100 mW | 40 °C | 0 °C | Desktop (Class I) | 59 in | Cord (Sold Separately) | Positive Center | 12 V | IEC 320-C14 |
