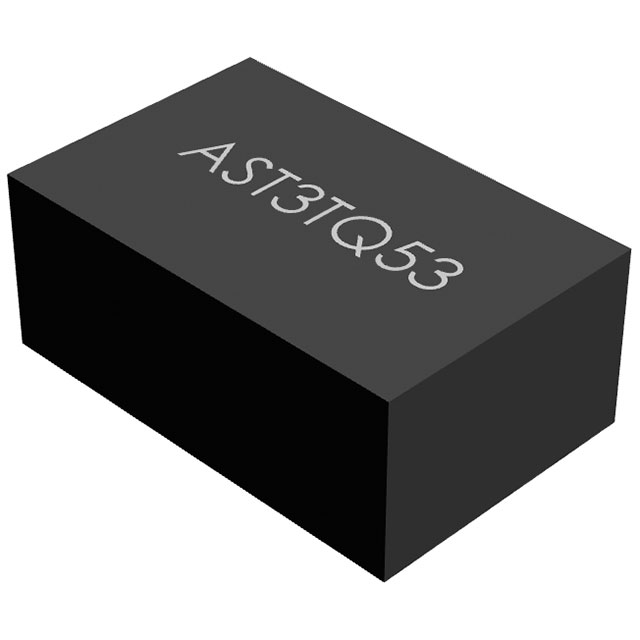

AST3TQ53 Series

Catalog

TCXO OSCILLATORS XTAL OSC TCXO 10.0000MHZ LVCMOS

Part	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Mounting Type	Base Resonator [custom]	Package / Case	Frequency Stability	Current - Supply (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Output	Frequency	Voltage - Supply	Type
Abracon LLC AST3TQ53-T-10.000MHZ-5-C	3.4 mm	0.134 in	5.2 mm	0.205 "	1.6 mm	0.063 in	Surface Mount	Crystal	4-SMD No Lead	50 ppb	6 mA	85 °C	-40 C	LVCMOS	10 MHz	3.3 V	TCXO
Abracon LLC AST3TQ53-T-10.000MHZ-5-SW	3.4 mm	0.134 in	5.2 mm	0.205 "	1.6 mm	0.063 in	Surface Mount	Crystal	4-SMD No Lead	50 ppb	6 mA	85 °C	-40 C	Clipped Sine Wave	10 MHz	3.3 V	TCXO
Abracon LLC AST3TQ53-T-24.576MHZ-5-C	3.4 mm	0.134 in	5.2 mm	0.205 "	1.6 mm	0.063 in	Surface Mount	Crystal	4-SMD No Lead	50 ppb	6 mA	85 °C	-40 C	LVCMOS	24.576 MHz	3.3 V	TCXO
