PA5130 Series

Catalog

POWER TRANSFORMERS 25W 15UH 200-700KHZ 9-57V FORWARD

Part	Type	Mounting Type	Frequency	Footprint [x]	Footprint [y]	Footprint [y]	Footprint [x]	Voltage - Primary [Max]	Voltage - Primary [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Style	Voltage - Isolation
Pulse Electronics PA5130.006NLT	For DC/DC Converters	Surface Mount	200 kHz	0.61 in	0.512 in	13 mm	15.5 mm	57 V	9 V	125 °C	-40 C	0.61 in	15.5 mm	13 mm	0.512 "	0.61 in	15.5 mm	Wirewound	2250 VDC

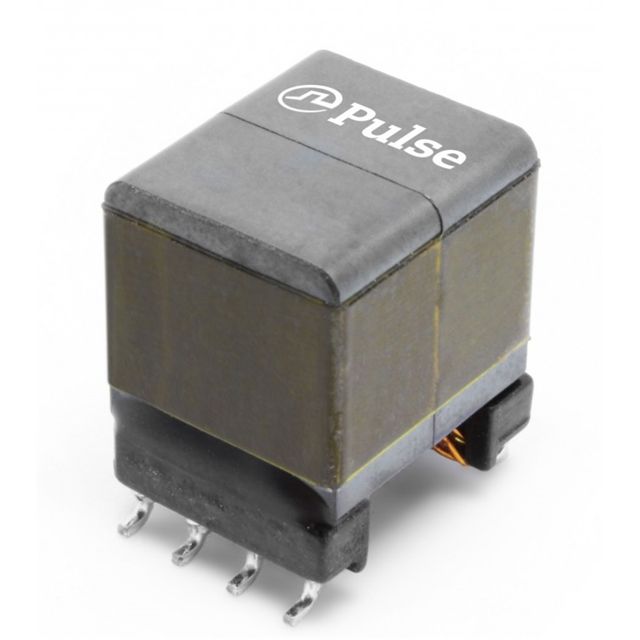

Pulse Electronics PA5130.001NLT	For DC/DC Converters	Surface Mount	200 kHz	0.61 in	0.512 in	13 mm	15.5 mm	57 V	33 V	125 °C	-40 C	0.61 in	15.5 mm	13 mm	0.512 "	0.61 in	15.5 mm	Wirewound	2250 VDC
