83352E Series
Manufacturer: Belden Inc.
Beta
⌘K

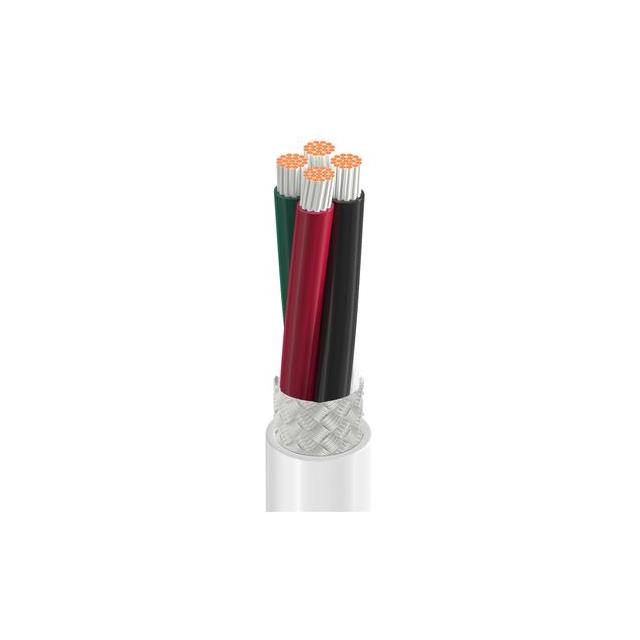

CABLE 4COND 16AWG WHT SHLD
| Part | Shield Coverage | Shield Material | Length | Length | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Insulation | Voltage | Operating Temperature [Min] | Operating Temperature [Max] | Cable Type | Shield Type | Qualification | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket Color | Wire Gauge | Number of Conductors | Conductor Material | Jacket (Insulation) Material | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 85 % | Copper Silver Coated | 304.8 m | 1000 ft | 0.279 mm | 0.011 " | 19 | 29 | Tetrafluoroethylene (TFE) | 600 V | -65 ░C | 200 °C | Multi-Conductor | Braid | MIL-W-16878/4 Type E | 0.229 in | 5.82 mm | White | 16 AWG | 4 | Copper Silver Coated | Tetrafluoroethylene (TFE) | ||
 Belden Inc. | 85 % | Copper Silver Coated | 0.279 mm | 0.011 " | 19 | 29 | Tetrafluoroethylene (TFE) | 600 V | -65 ░C | 200 °C | Multi-Conductor | Braid | MIL-W-16878/4 Type E | 0.229 in | 5.82 mm | White | 16 AWG | 4 | Copper Silver Coated | Tetrafluoroethylene (TFE) | 100 ft | 30.5 m |
