OP140 Series

Catalog

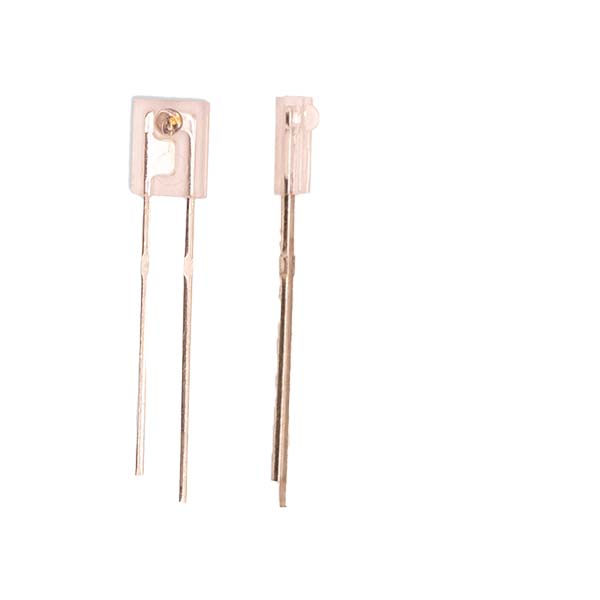

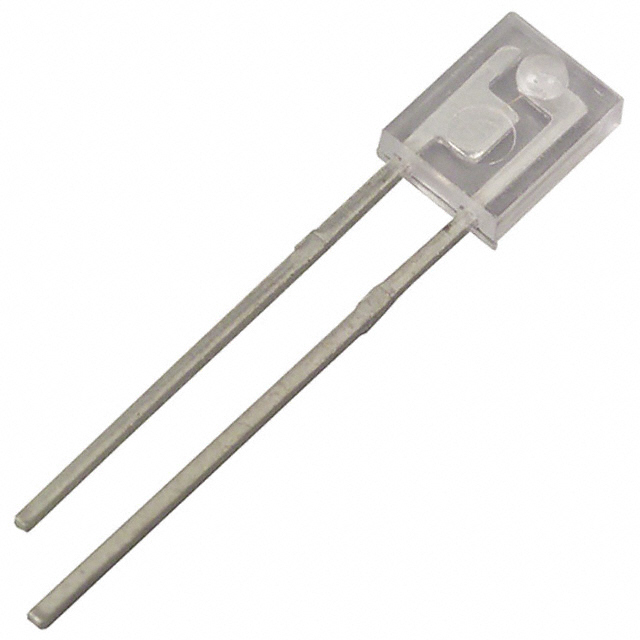

EMITTER IR 935NM 50MA RADIAL

Part	Viewing Angle	Orientation [custom]	Wavelength	Operating Temperature [Min]	Operating Temperature [Max]	Current - DC Forward (If) (Max)	Voltage - Forward (Vf) (Typ)	Radiant Intensity (Ie) Min @ If	Mounting Type	Type	Package / Case	Radiant Intensity (Ie) Min @ If [Min]
TT Electronics/BI OP140A	40 °	Side View	935 nm	-40 °C	100 °C	50 mA	1.6 V	0.4 mW/cm²	Through Hole	Infrared (IR)	Radial
TT Electronics/BI OP140C	40 °	Side View	935 nm	-40 °C	100 °C	50 mA	1.6 V		Through Hole	Infrared (IR)	Radial	0.2 mW/cm²
TT Electronics/BI OP140B	40 °	Side View	935 nm	-40 °C	100 °C	50 mA	1.6 V	0.3 mW/cm²	Through Hole	Infrared (IR)	Radial	0.3 mW/cm˛
TT Electronics/BI OP140D	40 °	Side View	935 nm	-40 °C	100 °C	50 mA	1.6 V	0.1 mW/cm˛	Through Hole	Infrared (IR)	Radial	0.1 mW/cm²
