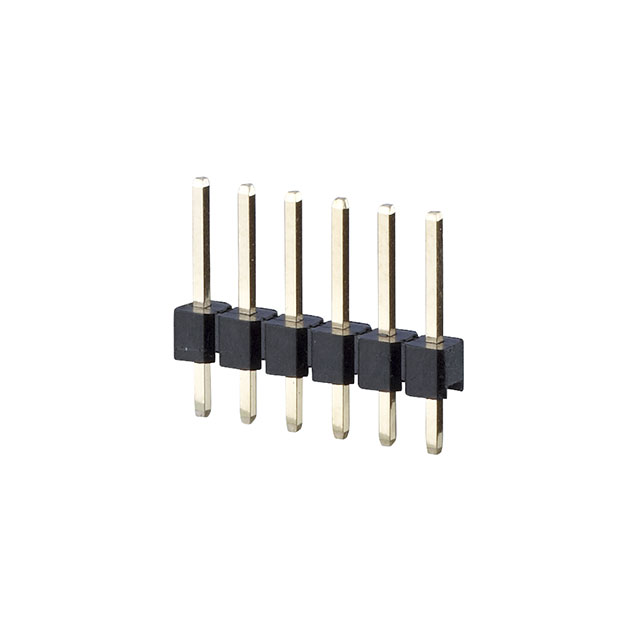

PR20208V Series
Manufacturer: METZ CONNECT USA Inc.
Beta
⌘K
PIN HEADER, THR, SINGLE ROW, 2.5
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness - Mating | Fastening Type | Connector Type | Mounting Type | Insulation Material | Overall Contact Length [x] | Overall Contact Length [x] | Number of Rows | Contact Material | Number of Positions | Insulation Height | Insulation Height | Insulation Color | Pitch - Mating | Pitch - Mating | Contact Type | Contact Length - Mating [x] | Contact Length - Mating [x] | Contact Shape | Contact Finish - Mating | Shrouding | Number of Positions Loaded | Termination | Contact Length - Post | Contact Length - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 METZ CONNECT USA Inc. | -40 C | 105 ░C | Flash | Push-Pull | Header | Through Hole | Polyethylene | 11.61 mm | 0.457 in | 1 | Copper Zinc | 8 | 0.098 " | 2.5 mm | Black | 0.1 " | 2.54 mm | Male Pin | 0.24 in | 6.1 mm | Square | Gold | Unshrouded | All | Solder | 0.118 in | 3 mm |
