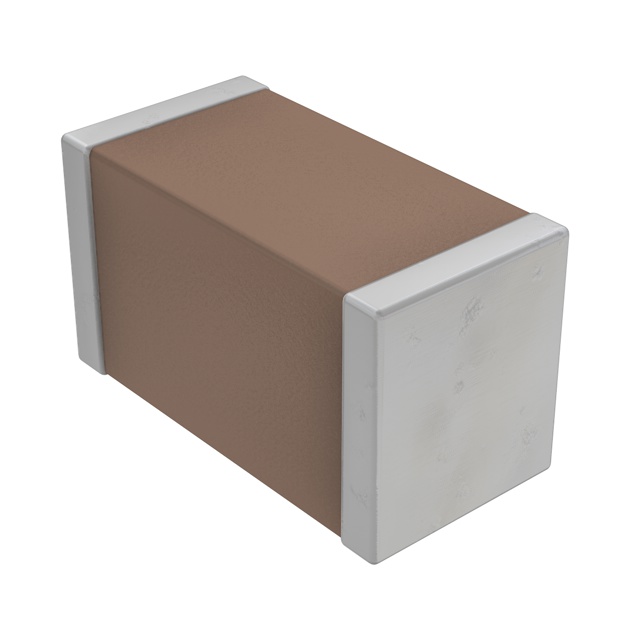

CGA Series

Catalog

MULTILAYER CERAMIC CAPACITORS MLCC - SMD/SMT CGA 1206 16V 4.7UF X7R 20% AEC-Q200

...

Part	Mounting Type	Temperature Coefficient	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Rated	Ratings	Capacitance	Applications	Tolerance	Thickness (Max) [Max]	Thickness (Max) [Max]	Package / Case	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Thickness (Max)	Features	Package / Case	Size / Dimension [y]	Thickness (Max) [Max] [z]
TDK Corporation CGA5L3X7R1C475M160AB	MLCC Surface Mount	X7R	-55 C	125 °C	16 V	AEC-Q200	4.7 µF	Automotive	20 %	0.075 in	1.9 mm	1206 (3216 Metric)	0.063 "	0.126 "	3.2 mm	1.6 mm
TDK Corporation CGA2B3X7R1V333K050BB	MLCC Surface Mount	X7R	-55 C	125 °C	35 V	AEC-Q200	0.033 çF	Automotive	10 %	0.022 in		0402 (1005 Metric)	0.02 in	0.039 "	1 mm	0.5 mm	0.55 mm
TDK Corporation CGA3E2C0G2A122J080AE	MLCC Surface Mount	C0G NP0	-55 C	125 °C	100 V	AEC-Q200	1200 pF	Automotive Boardflex Sensitive	5 %	0.037 in	0.95 mm	0603	0.031 in	0.063 "	1.6 mm			Soft Termination	1608 Metric	0.8 mm
TDK Corporation CGA3E2NP01H331J080AA	MLCC Surface Mount	C0G NP0	-55 C	150 °C	50 VDC	AEC-Q200	330 pF	Automotive	5 %			0603	0.031 in	0.063 "	1.6 mm		0.9 mm	High Temperature	1608 Metric	0.8 mm	0.035 in
TDK Corporation CGA9P4X7T2W105M250KE	MLCC Surface Mount	X7T	-55 C	125 °C	450 V	AEC-Q200	1 µF	Automotive Boardflex Sensitive	20 %	0.11 in	2.8 mm	2220	0.197 "	0.224 "	5.7 mm			Soft Termination	5750 Metric	5 mm
TDK Corporation CGA2B3X7S1A474K050BB	MLCC Surface Mount	X7S	-55 C	125 °C	10 V	AEC-Q200	0.47 µF	Automotive	10 %	0.022 in		0402 (1005 Metric)	0.02 in	0.039 "	1 mm	0.5 mm	0.55 mm
TDK Corporation CGA6M2X7R2A474M200AE	MLCC Surface Mount	X7R	-55 C	125 °C	100 V	AEC-Q200	0.47 µF	Automotive Boardflex Sensitive	20 %	0.091 in	2.3 mm	1210	0.098 in	0.126 "	3.2 mm	2.5 mm		Soft Termination	3225 Metric
TDK Corporation CGA2B2NP01H4R7C050BA	MLCC Surface Mount	C0G NP0	-55 C	150 °C	50 VDC	AEC-Q200	4.7 pF	Automotive	0.25 pF	0.022 in		0402 (1005 Metric)	0.02 in	0.039 "	1 mm	0.5 mm	0.55 mm	High Temperature
TDK Corporation CGA3E3C0G2E471J080AA	MLCC Surface Mount	C0G NP0	-55 C	125 °C	250 V	AEC-Q200	470 pF	Automotive	5 %			0603	0.031 in	0.063 "	1.6 mm		0.9 mm		1608 Metric	0.8 mm	0.035 in
TDK Corporation CGA3E3X5R0J335M080AB	MLCC Surface Mount	X5R	-55 C	85 °C	6.3 VDC	AEC-Q200	3.3 µF	Automotive	20 %			0603	0.031 in	0.063 "	1.6 mm		0.9 mm		1608 Metric	0.8 mm	0.035 in
