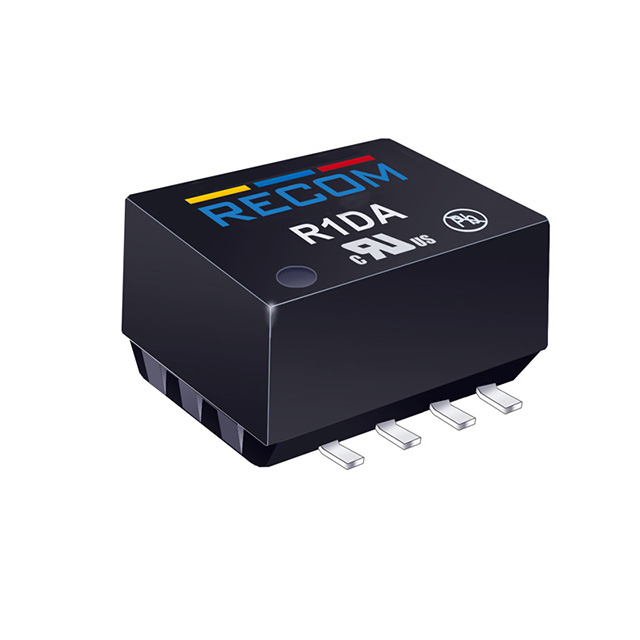

R1DA Series

Catalog

1W DC/DC-CONVERTER ECONOLINE SMD 1KV UNREG ROHS COMPLIANT: YES

...

Part	Voltage - Input (Min) [Min]	Voltage - Isolation	Number of Outputs	Voltage - Output 1	Voltage - Output 2	Features	Type	Applications	Efficiency	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input (Max) [Max]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Package / Case	Current - Output (Max)	Mounting Type	Current - Output (Max) [Max]	Current - Output (Max) [Min]	Current - Output (Max)	Current - Output (Max)

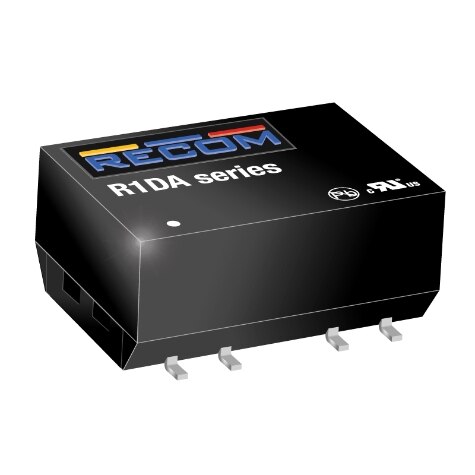

Recom Power R1DA-051212/P	4.5 V	1000 V	2	12 V	12 V	SCP	Isolated Module	ITE (Commercial)	80 %	-40 C	100 °C	5.5 V	7 mm	0.42 "	10.7 mm	0.6 "	0.28 "	15.2 mm	10-SMD Module 7 Leads	42 mA	Surface Mount
Recom Power R1DA-240909	21.6 V	1000 V	2	9 V	9 V	SCP	Isolated Module	ITE (Commercial)	78 %	-40 C	100 °C	26.4 V	7 mm	0.42 "	10.7 mm	0.6 "	0.28 "	15.2 mm	10-SMD Module 7 Leads		Surface Mount	56 mA
Recom Power R1DA-051515/P	4.5 V	1000 V	2	15 V	15 V	SCP	Isolated Module	ITE (Commercial)		-40 C	100 °C	5.5 V	7 mm	0.42 "	10.7 mm	0.6 "	0.28 "	15.2 mm	10-SMD Module 7 Leads		Surface Mount	33 mA	33 mA
Recom Power R1DA-050505-R	4.5 V	1000 V	2	5 V	5 V	SCP	Isolated Module	ITE (Commercial)	78 %	-40 C	100 °C	5.5 V	7 mm	0.42 "	10.7 mm	0.6 "	0.28 "	15.2 mm	10-SMD Module 7 Leads		Surface Mount			100 mA	100 mA
Recom Power R1DA-090505	8.1 V	1000 V	2	5 V	5 V	SCP	Isolated Module	ITE (Commercial)	78 %	-40 C	100 °C	9.9 V	7 mm	0.42 "	10.7 mm	0.6 "	0.28 "	15.2 mm	10-SMD Module 7 Leads		Surface Mount			100 mA	100 mA
Recom Power R1DA-051515-R	4.5 V	1000 V	2	15 V	15 V	SCP	Isolated Module	ITE (Commercial)		-40 C	100 °C	5.5 V	7 mm	0.42 "	10.7 mm	0.6 "	0.28 "	15.2 mm	10-SMD Module 7 Leads		Surface Mount	33 mA	33 mA
Recom Power R1DA-3.31515/P-R	2.97 V	1000 V	2	15 V	15 V	SCP	Isolated Module	ITE (Commercial)		-40 C	100 °C	3.63 V	7 mm	0.42 "	10.7 mm	0.6 "	0.28 "	15.2 mm	10-SMD Module 7 Leads		Surface Mount	33 mA	33 mA
Recom Power R1DA-120909-R	10.8 V	1000 V	2	9 V	9 V	SCP	Isolated Module	ITE (Commercial)	78 %	-40 C	100 °C	13.2 V	7 mm	0.42 "	10.7 mm	0.6 "	0.28 "	15.2 mm	10-SMD Module 7 Leads		Surface Mount	56 mA
Recom Power R1DA-091212/P-R	8.1 V	1000 V	2	12 V	12 V	SCP	Isolated Module	ITE (Commercial)	80 %	-40 C	100 °C	9.9 V	7 mm	0.42 "	10.7 mm	0.6 "	0.28 "	15.2 mm	10-SMD Module 7 Leads	42 mA	Surface Mount
Recom Power R1DA-3.30505/P-R	3 V	1000 V	2	5 V	5 V	SCP	Isolated Module	ITE (Commercial)	78 %	-40 C	100 °C	3.6 V	7 mm	0.42 "	10.7 mm	0.6 "	0.28 "	15.2 mm	10-SMD Module 7 Leads		Surface Mount			100 mA	100 mA
