1571095 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K
SWITCH ROCKER SPST 20A 125V
| Part | Actuator Marking | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Mounting Type | Circuit | Operating Temperature [Max] | Operating Temperature [Min] | Termination Style | Current Rating (Amps) | Electrical Life | Ingress Protection | Voltage Rating - AC | Color - Actuator/Cap | Actuator Type | Mechanical Life | Switch Function |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | O - | 21.2 mm | 36.6 mm | Panel Mount Snap-In | SPST | 85 °C | -20 C | Screw Terminal | 20 A | 6000 Cycles | IP66 | 125 V | Black | Concave (Curved) | 100000 Cycles | On-Off |
 TE Connectivity Raychem Cable Protection | O - | 21.2 mm | 36.6 mm | Panel Mount Snap-In | SPST | 85 °C | -20 C | Solder Lug | 20 A | 6000 Cycles | IP66 | 125 V | Black | Concave (Curved) | 100000 Cycles | On-Off |

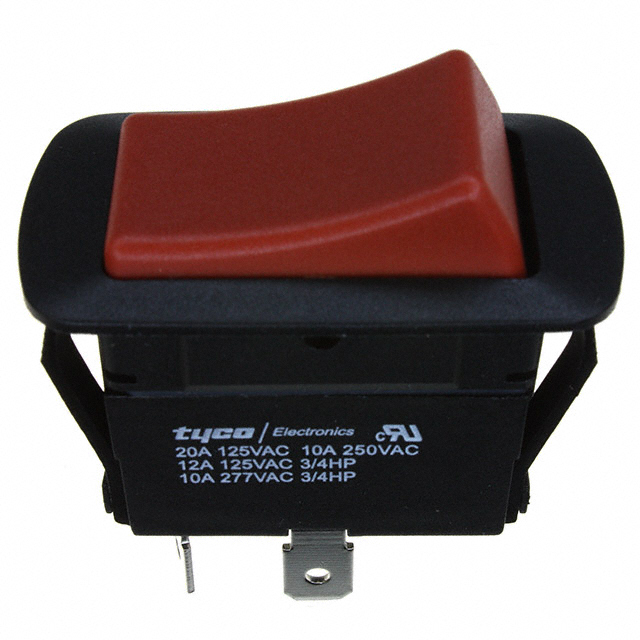

 TE Connectivity Raychem Cable Protection | No Marking | 21.2 mm | 36.6 mm | Panel Mount Snap-In | SPST | 85 °C | -20 C | Solder Lug | 20 A | 6000 Cycles | IP66 | 125 V | Red | Concave (Curved) | 100000 Cycles | On-Off |
