RXM2A Series

Catalog

POWER RELAY, DPDT, 48 VAC, 12 A, ZELIO RXM SERIES, SOCKET

Part	Coil Resistance	Switching Voltage [Max]	Contact Rating (Current)	Mounting Type	Operate Time	Contact Material	Must Release Voltage	Approval Agency	Coil Current	Coil Voltage	Contact Form	Features	Must Operate Voltage	Release Time	Termination Style	Coil Type	Load - Max Switching	Relay Type	Operating Temperature [Max]	Operating Temperature [Min]
SCHNEIDER ELECTRIC RXM2AB1E7	710 Ohms	28 VDC 250 VAC	12 A	Socketable	20 ms	Silver Nickel (AgNi)	7.2 VAC	CE CSA GOST IECEE Lloyd's UL	67.6 mA	48 VAC	DPDT (2 Form C)	Test Button	38.4 VAC	20 ms	Plug In	Non Latching	336 W 3000 VA	General Purpose	55 °C	-40 C

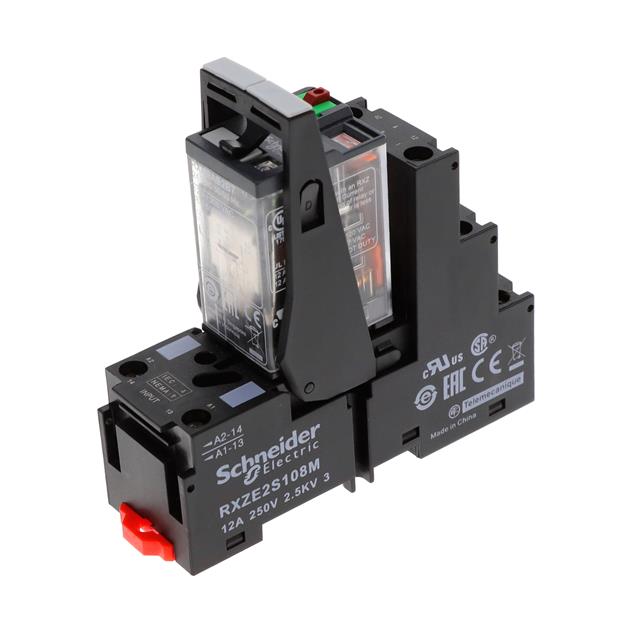

SCHNEIDER ELECTRIC RXM2AB2B7PVS	180 Ohms	28 VDC 250 VAC	12 A	DIN Rail	20 ms	Silver Nickel (AgNi)	7.2 VAC	CE CSA GOST IECEE Lloyd's UL	133.3 mA	24 VAC	DPDT (2 Form C)	Lighted Indicator Test Button	19.2 VAC	20 ms	Screw Terminal	Non Latching	336 W 3000 VA	General Purpose	55 °C	-40 C
SCHNEIDER ELECTRIC RXM2AB1ED	2560 Ohms	28 VDC 250 VAC	12 A	Socketable	20 ms	Silver Nickel (AgNi)	4.8 VDC	CE CSA GOST IECEE Lloyd's UL	18.8 mA	48 VDC	DPDT (2 Form C)	Test Button	38.4 VDC	20 ms	Plug In	Non Latching	336 W 3000 VA	General Purpose	55 °C	-40 C
SCHNEIDER ELECTRIC RXM2AB1FD	13.44 kOhms	28 VDC 250 VAC	12 A	Socketable	20 ms	Silver Nickel (AgNi)	11 VDC	CE CSA GOST IECEE Lloyd's UL	8.2 mA	110 VDC	DPDT (2 Form C)	Test Button	88 VDC	20 ms	Plug In	Non Latching	336 W 3000 VA	General Purpose	55 °C	-40 C
SCHNEIDER ELECTRIC RXM2AB2BDPVS	650 Ohms	28 VDC 250 VAC	12 A	DIN Rail	20 ms	Silver Nickel (AgNi)	2.4 VDC	CE CSA GOST IECEE Lloyd's UL	36.9 mA	24 VDC	DPDT (2 Form C)	Lighted Indicator Test Button	19.2 VDC	20 ms	Screw Terminal	Non Latching	336 W 3000 VA	General Purpose	55 °C	-40 C
SCHNEIDER ELECTRIC RXM2AB2ED	2560 Ohms	28 VDC 250 VAC	12 A	Socketable	20 ms	Silver Nickel (AgNi)	4.8 VDC	CE CSA GOST IECEE Lloyd's UL	18.8 mA	48 VDC	DPDT (2 Form C)	Lighted Indicator Test Button	38.4 VDC	20 ms	Plug In	Non Latching	336 W 3000 VA	General Purpose	55 °C	-40 C
SCHNEIDER ELECTRIC RXM2AB3BD	650 Ohms	28 VDC 250 VAC	10 A	Socketable	20 ms	Silver Nickel (AgNi)	2.4 VDC	CE CSA GOST IECEE Lloyd's UL	36.9 mA	24 VDC	DPDT (2 Form C)	Lighted Indicator	19.2 VDC	20 ms	Plug In	Non Latching	280 W 2500 VA	General Purpose	55 °C	-40 C
SCHNEIDER ELECTRIC RXM2AB2E7	710 Ohms	28 VDC 250 VAC	12 A	Socketable	20 ms	Silver Nickel (AgNi)	7.2 VAC	CE CSA GOST IECEE Lloyd's UL	67.6 mA	48 VAC	DPDT (2 Form C)	Lighted Indicator Test Button	38.4 VAC	20 ms	Plug In	Non Latching	336 W 3000 VA	General Purpose	55 °C	-40 C

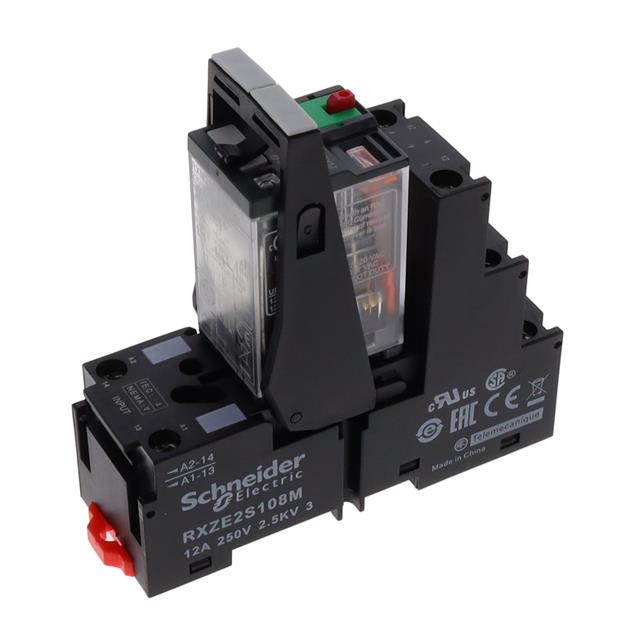

SCHNEIDER ELECTRIC RXM2AB2P7PVS	15 kOhms	28 VDC 250 VAC	12 A	DIN Rail	20 ms	Silver Nickel (AgNi)	69 VAC	CE CSA GOST IECEE Lloyd's UL	15.3 mA	230 VAC	DPDT (2 Form C)	Lighted Indicator Test Button	184 VAC	20 ms	Screw Terminal	Non Latching	336 W 3000 VA	General Purpose	55 °C	-40 C

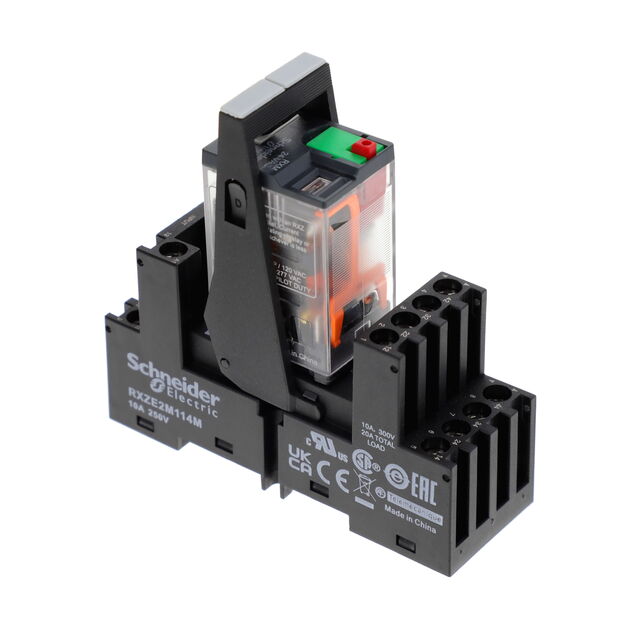

SCHNEIDER ELECTRIC RXM2AB2B7PVM	180 Ohms	28 VDC 250 VAC	10 A	DIN Rail	20 ms	Silver Nickel (AgNi)	7.2 VAC	CE CSA GOST IECEE Lloyd's UL	133.3 mA	24 VAC	DPDT (2 Form C)		19.2 VAC	20 ms	Screw Terminal	Non Latching	280 W 2500 VA	General Purpose	55 °C	-40 C
