3002-7571 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

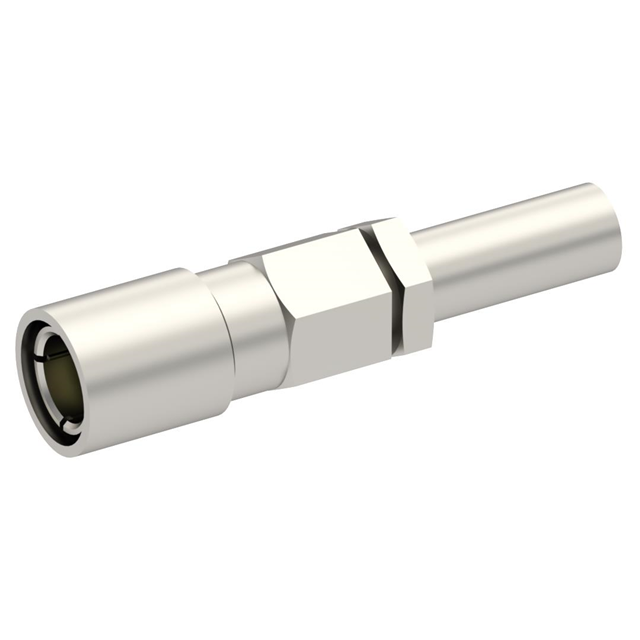

SLB / STRAIGHT PLUG FEMALE CRIMP
| Part | Mating Cycles | Voltage Rating | Body Finish | Center Contact Plating | Operating Temperature [Min] | Operating Temperature [Max] | Body Material | Insertion Loss | Dielectric Material | Cable Group | Fastening Type | Shield Termination | Impedance | Connector Type | Center Contact Material | Mounting Type | Frequency - Max [Max] | Contact Termination | Number of Ports | Connector Style | Housing Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | 500 | 335 V | Nickel | Gold | -65 ░C | 165 °C | Brass | 0.3 dB | Polytetrafluoroethylene (PTFE) | 188 316 RG-174 | Snap-On | Crimp | 50 Ohms | Female Socket Plug | Beryllium Copper | Free Hanging (In-Line) | 4 GHz | Crimp | 1 | SLB | Silver |
