5120FL Series
Manufacturer: Belden Inc.
Beta
⌘K

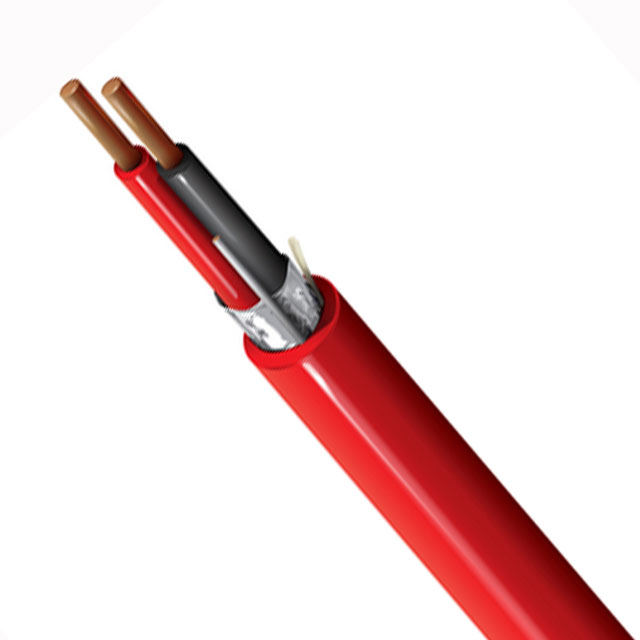

CABLE 2COND 14AWG RED SHLD
| Part | Shield Coverage | Shield Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Wire Gauge | Voltage | Cable Type | Jacket Color | Shield Type | Usage | Conductor Insulation | Conductor Strand | Ratings | Features | Jacket (Insulation) Material | Conductor Material | Length | Length | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Number of Conductors |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 100 % | Aluminum | 0.209 in | 5.31 mm | 14.5 AWG | 300 VDC | Multi-Conductor | Red | Foil | Alarm Safety | Polypropylene (PP) | Solid | UL Style FPLR | Drain Wire Rip Cord | Poly-Vinyl Chloride (PVC) Riser | Copper Bare | 304.8 m | 1000 ft | 0.017 " | 0.432 mm | 2 |
