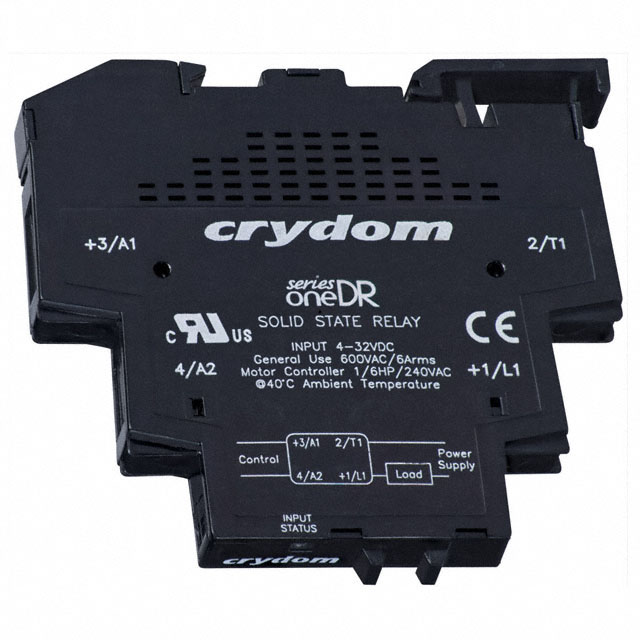

DR24D06 Series

Catalog

SSR RELAY SPST-NO 6A 24-280V

Part	Voltage - Load [Min]	Voltage - Load [Max]	Termination Style	Mounting Type	Package / Case	Load Current	Output Type	Voltage - Input [Max]	Voltage - Input [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency
Sensata-Crydom DR24D06X	24 V	280 V	Screw Terminal	DIN Rail	Module	6 A	AC Zero Cross	32 VDC	4 V	-20 ░C	40 °C	CE cULus
Sensata-Crydom DR24D06XR	24 V	280 V	Screw Terminal	DIN Rail	Module	6 A	AC	32 VDC	4 V	-20 ░C	40 °C	CE cULus
Sensata-Crydom DR24D06	24 V	280 V	Screw Terminal	DIN Rail	Module	6 A	AC Zero Cross	32 VDC	4 V	-20 ░C	40 °C	CE cULus
