VFHY1104 Series
Manufacturer: Stanley Electric Co
Beta
⌘K

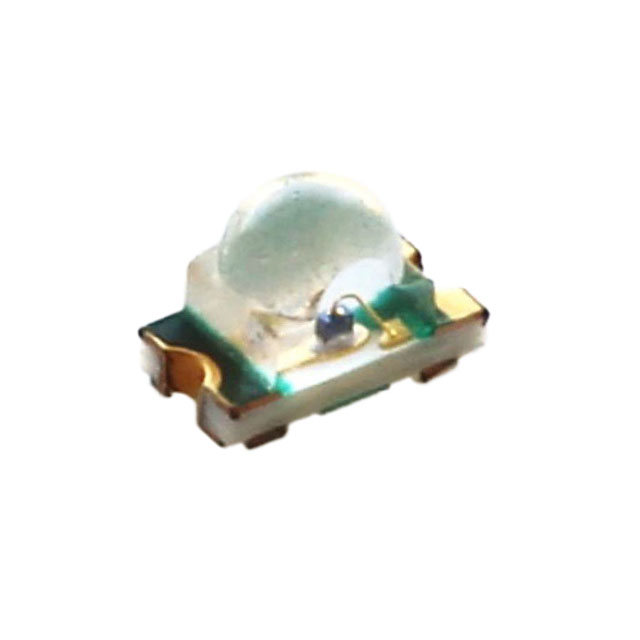

LED YELLOW CLEAR 1608 SMD
| Part | Configuration | Voltage - Forward (Vf) (Typ) | Size / Dimension [x] | Size / Dimension [y] | Height (Max) [z] | Supplier Device Package | Wavelength - Dominant | Package / Case | Package / Case | Color | Mounting Type | Wavelength - Peak | Lens Color | Lens Size [diameter] | Millicandela Rating | Lens Transparency | Lens Style | Current - Test | Height (Max) [z] | Viewing Angle |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Stanley Electric Co | Standard | 1.9 V | 1.6 mm | 0.8 mm | 1.15 mm | 1608 | 589 nm | 1608 Metric | 0603 | Yellow | Surface Mount | 592 nm | Colorless | 1 mm Dia | 250 mcd | Clear | Round with Domed Top | 20 mA | ||
 Stanley Electric Co | Standard | 2 V | 3.2 mm | 2.8 mm | 2-PLCC | 589 nm | 2-PLCC | Yellow | Surface Mount | 594 nm | Colorless | 2.4 mm Dia | 170 mcd | Clear | Round with Flat Top | 20 mA | 2.1 mm | 120 ° |
