CS-32-12 Series

Catalog

SWITCH ROTARY DIP SPDT 0.1A 16V

Part	Electrical Life	Length	Length	Body Material	Mounting Type	Actuator Level	Height Above Board [z]	Height Above Board [z]	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Circuit	Voltage Rating	Current Rating (Amps)	Number of Positions	Actuator Type	Height Above Board	Height Above Board

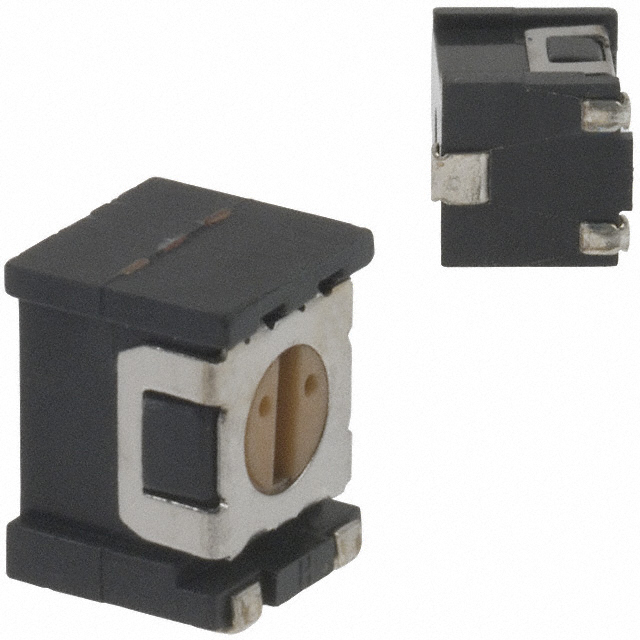

Nidec Components Corporation CS-32-12ZETG	50 Cycles	3.6 mm	0.142 in	Epoxy	Right Angle Surface Mount	Flush Recessed	4.7 mm	0.185 in	85 °C	-40 C	J Lead	SPDT	16 VDC	100 mA	2	Rotary for Tool

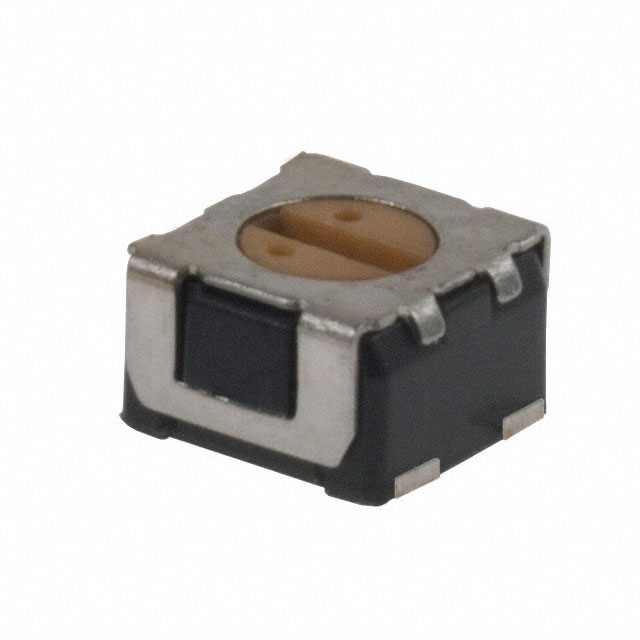

Nidec Components Corporation CS-32-12ZETA	50 Cycles	3.4 mm	0.134 in	Epoxy	Surface Mount	Flush Recessed			85 °C	-40 C	J Lead	SPDT	16 VDC	100 mA	2	Rotary for Tool	2 mm	0.079 in
Nidec Components Corporation CS-32-12ZEB	50 Cycles	3.4 mm	0.134 in	Epoxy	Surface Mount	Flush Recessed			85 °C	-40 C	Gull Wing	SPDT	16 VDC	100 mA	2	Rotary for Tool	2 mm	0.079 in
Nidec Components Corporation CS-32-12ZEA	50 Cycles	3.4 mm	0.134 in	Epoxy	Surface Mount	Flush Recessed			85 °C	-40 C	J Lead	SPDT	16 VDC	100 mA	2	Rotary for Tool	2 mm	0.079 in

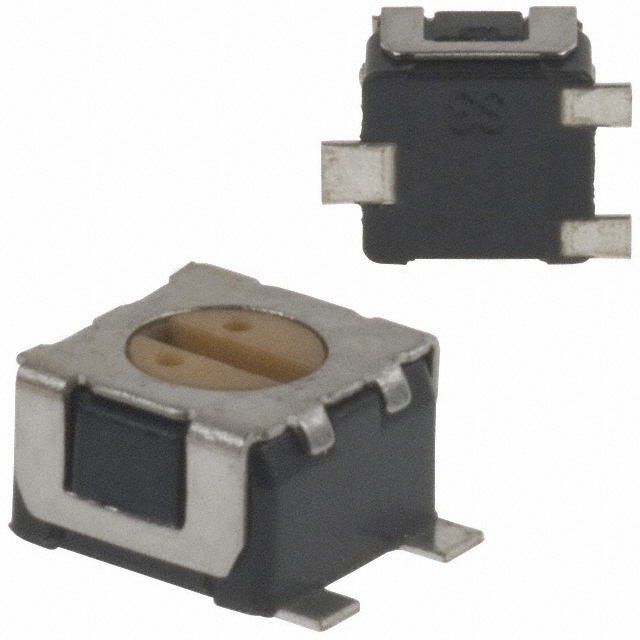

Nidec Components Corporation CS-32-12ZETB	50 Cycles	3.4 mm	0.134 in	Epoxy	Surface Mount	Flush Recessed			85 °C	-40 C	Gull Wing	SPDT	16 VDC	100 mA	2	Rotary for Tool	2 mm	0.079 in
Nidec Components Corporation CS-32-12ZEH	50 Cycles	3.6 mm	0.142 in	Epoxy	Right Angle Surface Mount	Flush Recessed	4.7 mm	0.185 in	85 °C	-40 C	Gull Wing	SPDT	16 VDC	100 mA	2	Rotary for Tool
