4620 Series

Catalog

CONN EJECTOR HEADER HDR 20 POS 2.54MM IDT RA CABLE MOUNT

Part	Number of Positions	Pitch	Pitch	Contact Finish	Cable Termination	Row Spacing	Row Spacing	Features	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Wire Gauge [Max]	Wire Gauge	Wire Gauge [Min]	Contact Type	Connector Type	Number of Rows [custom]	Wire Type	Fastening Type	Color
3M Electronic Specialty 4620-7001	20	0.1 "	2.54 mm	Gold	IDC	2.54 mm	0.1 "	Closed End	Free Hanging (In-Line)	30 Áin	0.76 Ám	28 AWG	Stranded or Solid	26 AWG	Male Pin	Plug	2	Discrete Ribbon Cable	Push-Pull	Gray
3M Electronic Specialty 4620-7305	20	0.1 "	2.54 mm	Gold	IDC	2.54 mm	0.1 "	Closed End	Free Hanging (In-Line)	30 Áin	0.76 Ám	28 AWG	Stranded or Solid	26 AWG	Male Pin	Plug	2	Discrete Ribbon Cable	Latch Lock/Eject Hooks Long	Gray
3M Electronic Specialty 4620-6201	20	0.1 "	2.54 mm	Gold	IDC	2.54 mm	0.1 "	Feed Through	Free Hanging (In-Line)	30 Áin	0.76 Ám	28 AWG	Stranded or Solid	26 AWG	Male Pin	Plug	2	Discrete Ribbon Cable	Latch Lock/Eject Hooks	Gray
3M Electronic Specialty 4620-7301	20	0.1 "	2.54 mm	Gold	IDC	2.54 mm	0.1 "	Closed End	Free Hanging (In-Line)	30 Áin	0.76 Ám	28 AWG	Stranded or Solid	26 AWG	Male Pin	Plug	2	Discrete Ribbon Cable	Latch Lock/Eject Hooks Long	Gray
3M Electronic Specialty 4620-7005	20	0.1 "	2.54 mm	Gold	IDC	2.54 mm	0.1 "	Closed End	Free Hanging (In-Line)	30 Áin	0.76 Ám	28 AWG	Stranded or Solid	26 AWG	Male Pin	Plug	2	Discrete Ribbon Cable		Gray
3M Electronic Specialty 4620-7201	20	0.1 "	2.54 mm	Gold	IDC	2.54 mm	0.1 "	Closed End	Free Hanging (In-Line)	30 Áin	0.76 Ám	28 AWG	Stranded or Solid	26 AWG	Male Pin	Plug	2	Discrete Ribbon Cable	Latch Lock/Eject Hooks	Gray

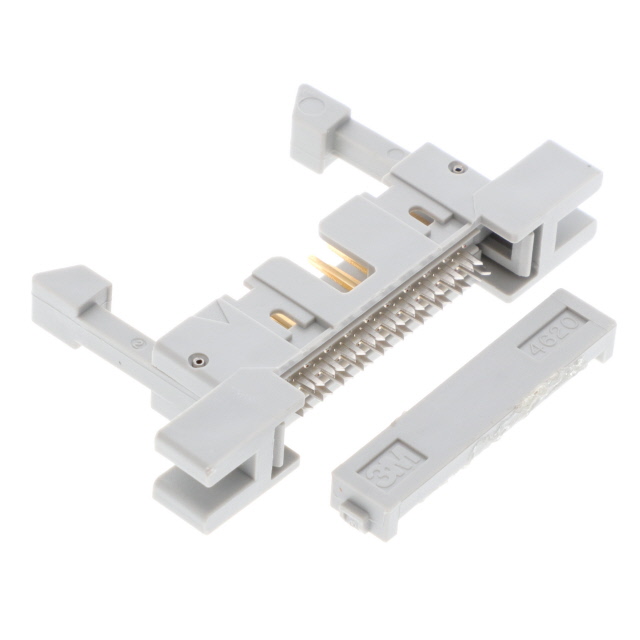

3M Electronic Specialty 4620-6300	20	0.1 "	2.54 mm	Gold	IDC	2.54 mm	0.1 "	Feed Through	Free Hanging (In-Line)	30 Áin	0.76 Ám	28 AWG	Stranded or Solid	26 AWG	Male Pin	Plug	2	Discrete Ribbon Cable	Latch Lock/Eject Hooks Long	Gray
3M Electronic Specialty 4620-7000	20	0.1 "	2.54 mm	Gold	IDC	2.54 mm	0.1 "	Closed End	Free Hanging (In-Line)	30 Áin	0.76 Ám	28 AWG	Stranded or Solid	26 AWG	Male Pin	Plug	2	Discrete Ribbon Cable	Push-Pull	Gray
